Same model may have multiple batches, images only for reference.

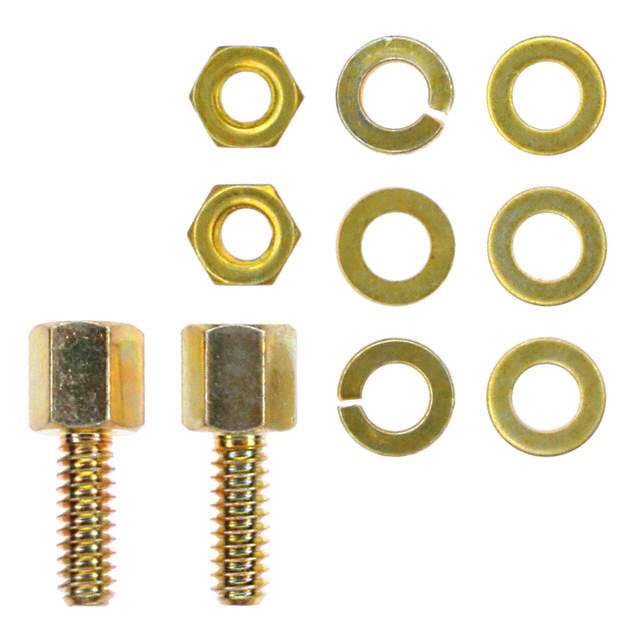

5205817-1 Real Image
Same model may have multiple batches, images only for reference.

5205817-1

Part No 5205817-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN SCREWLOCK FEMALE 2 SETS/BAG  /  Jackscrew Socket For AMPLIMITE Series HDF, HDP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors - Accessories - Jackscrews
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD
Package Bulk
Accessory Type Jackscrew Socket
For Use With/Related Products AMPLIMITE Series HDF, HDP
Features Hardware Included
Length - Threaded Portion Below Head 0.312" (7.92mm)
Length - Below Head 0.312" (7.92mm)
Thread Size 4-40 Socket, 4-40 Screw
Base Product Number 5205817
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 7318.15.2010
Other Names A33687,52058171,-5205817-1-SI
Standard Package 1
Win Source Part Number 1022470-5205817-1
Ultra Librarian 3D Model Ultra Librarian 5205817-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD series jackscrew socket is a high-quality accessory designed for use with the AMPLIMITE series HDF and HDP connectors.

  • Series: AMPLIMITE HD
  • Accessory Type: Jackscrew Socket
  • Hardware Included: Yes
  • Thread Size (Socket): 4-40
  • Thread Size (Screw): 4-40
  • Length Below Head: 0.312" (7.92mm)
  • Threaded Portion Below Head: 0.312" (7.92mm)
