Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 4
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)

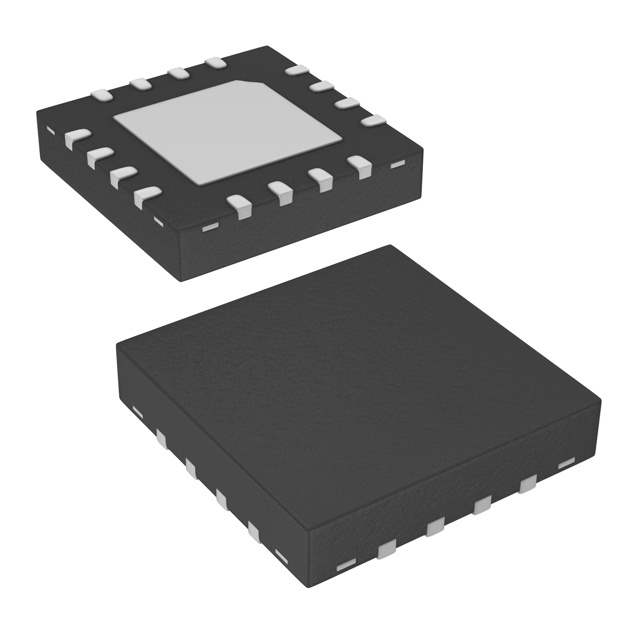

Case / Package 16-QFN (4x4)
Win Source Part Number 040874-ISL6614CR-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL6614CR-T CAD Model

Description

The Intersil ISL6614CR-T is a half-bridge driver IC with four non-inverting synchronous channels.

  • Manufacturer: Intersil
  • Type: Half-Bridge Driver IC
  • Channels: Four non-inverting synchronous
  • MOSFET Type: N-channel
  • Package: 16-QFN (4x4)
  • Supply Voltage: 10.8 V to 13.2 V
  • Peak Output Current (Source): 1.25A
  • Peak Output Current (Sink): 2A
  • High Side Voltage: Up to 36V
  • Rise Time: 26ns
  • Fall Time: 18ns
  • Application: Integrated circuits and other electronic devices
  • Status: Obsolete (End of Life)
