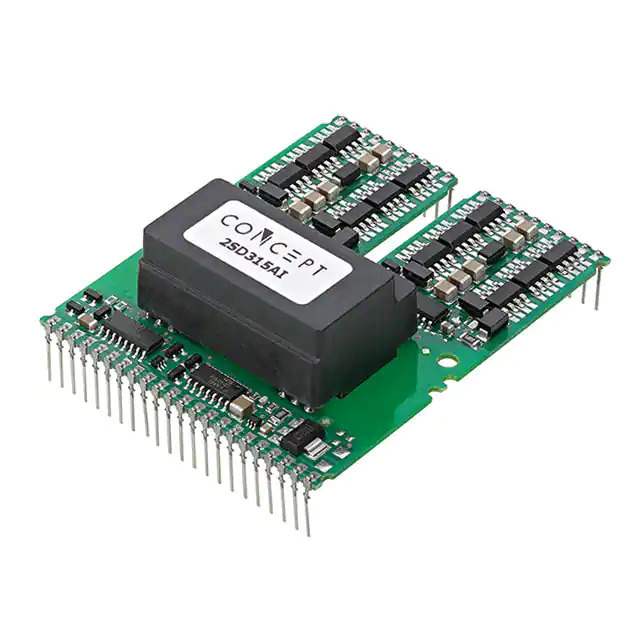

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Power Integrations
Series SCALE™-1
Package Tray
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type IGBT, N-Channel, P-Channel MOSFET
Current - Peak Output (Source, Sink) 18A, 18A
Rise / Fall Time (Typ) 160ns, 130ns
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 44-DIP Module, 42 Leads
Supplier Device Package Module
Base Product Number 2SD315
Standard Package 12 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 846845-2SD315AI
Ultra Librarian 3D Model Ultra Librarian 2SD315AI CAD Model

Description

The 846845-2SD315AI is a gate driver IC designed for power management applications.

  • Configuration: half-bridge driven
  • Drivers: two drivers
  • Gate Type Compatibility: IGBT, N-Channel, and P-Channel MOSFET
  • Peak Output Current (Source): 18A
  • Peak Output Current (Sink): 18A
  • Rise Time: 160ns
  • Fall Time: 130ns
  • Package: 44-DIP Module with 42 leads
  • Operating Temperature: -40°C to 85°C
