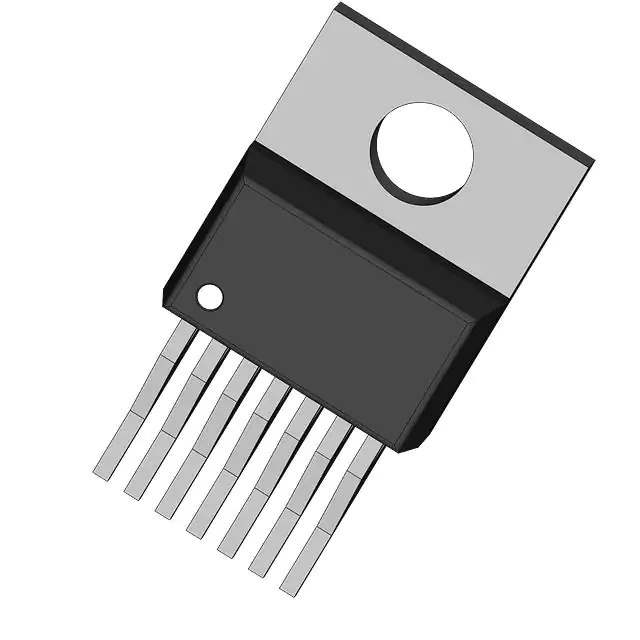

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Intersil
Series SynchroFET™
Package Bulk
Product Status Active
Programmable Not Verified
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 1
Gate Type N-Channel MOSFET
Voltage - Supply 10.8V ~ 13.2V
Input Type Non-Inverting
Rise / Fall Time (Typ) 20ns, 20ns
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package 7-Gullwing SIP
Base Product Number HIP5015
Standard Package 134 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 598059-HIP5015IS
Ultra Librarian 3D Model Ultra Librarian HIP5015IS CAD Model

Description

The 598059-HIP5015IS is a gate driver integrated circuit (IC) belonging to the power management category.

  • Application: Driving N-channel MOSFETs in synchronous half-bridge configurations
  • Series: SynchroFET™
  • Packaging: Bulk
  • Standard Package: 134 pieces
  • Input Type: Non-inverting
  • Driver Channels: Single
  • Rise/Fall Time: 20ns
  • Supply Voltage: 10.8V to 13.2V
  • Mounting Type: Surface mount
  • Package/Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
  • Operating Temperature: -40°C to 150°C
