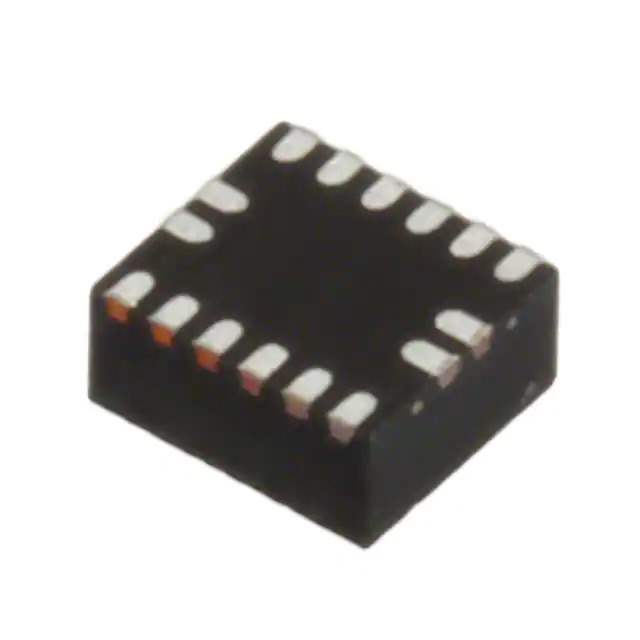

EP53A7HQI Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Intel
Series Enpirion® 5300
Package Tape & Reel
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 1.8 ~ 3.3V
Current - Output (Max) 1A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting Type Surface Mount
Package / Case 16-PowerTFQFN Module
Size / Dimension 0.12" L x 0.12" W x 0.04" H (3.0mm x 3.0mm x 1.1mm)
Supplier Device Package 16-QFN (3x3)
Control Features Enable, Active High
Base Product Number EP53A7
Standard Package 1,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 589490-EP53A7HQI
Ultra Librarian 3D Model Ultra Librarian EP53A7HQI CAD Model

Description

The Intel Enpirion 5300 EP53A7HQI is a non-isolated PoL (Point of Load) module.

  • Manufacturer: Intel Enpirion
  • Product Name: 5300 EP53A7HQI
  • Type: Non-isolated PoL (Point of Load) module
  • Application: Board mount
  • Intended Use: ITE (Commercial)
  • Size: 0.12" x 0.12" x 0.04" (3.0mm x 3.0mm x 1.1mm)
  • Maximum Output Current: 1A
  • Voltage Input Range: 2.4V to 5.5V
  • Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), short circuit protection (SCP), and undervoltage lockout (UVLO)
  • Package: Tape & reel
  • Standard Package Size: 1,000 pieces
  • Mounting: Surface mountable
  • Package Type: 16-PowerTFQFN module
  • Description: High-efficiency power supply solution
