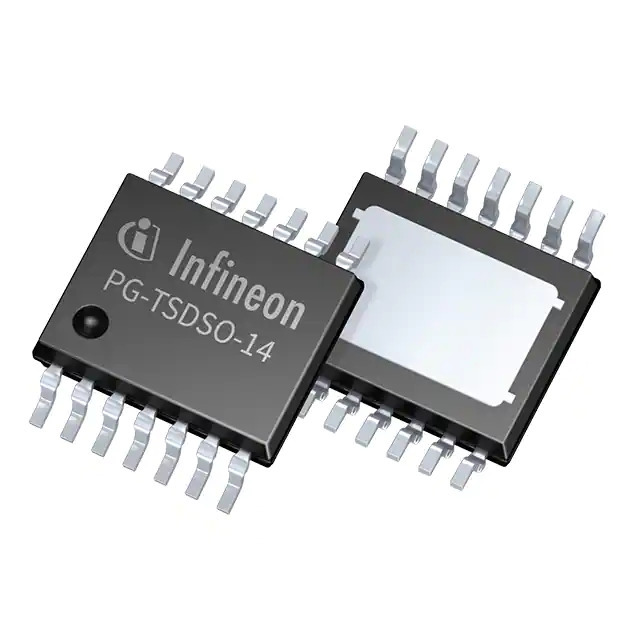

TLE94003EPXUMA1

Name: TLE94003EPXUMA1
Brand: Infineon Technologies
SKU: 1353082
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TLE94003EPXUMA1
Manufacturer	Infineon Technologies
Catalog	PMIC - Full, Half - Bridge Drivers
Description	IC HALF BRIDGE DRVR 2A TSDSO-14 / Half Bridge (3) Driver DC Motors, General Purpose DMOS PG-TSDSO-14
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr	Infineon Technologies
Series	-
Package	Tape & Reel
Product Status	Active
Output Configuration	Half Bridge (3)
Applications	DC Motors, General Purpose
Interface	Direct
Load Type	Inductive
Technology	DMOS
Rds On (Typ)	825mOhm LS, 825mOhm HS
Current - Output / Channel	2A
Current - Peak Output	-
Voltage - Supply	3V ~ 5.5V
Voltage - Load	5.5V ~ 20V
Temperature Range - Operating	-40°C ~ 150°C (TJ)
Features	-
Fault Protection	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	PG-TSDSO-14
Base Product Number	TLE94003
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1353082-TLE94003EPXUMA1
Ultra Librarian 3D Model	Ultra Librarian TLE94003EPXUMA1 CAD Model

Description

The TLE94003EPXUMA1 is a full half-bridge driver IC from Infineon Technologies.

Application: Power Management, DC Motor Driving
Output Configuration: Half Bridge
Current Output: 2A per channel
Voltage Range: 3V to 5.5V
Fault Protection: Current Limiting, Over Temperature Protection, Short Circuit Protection, Undervoltage Lockout (UVLO)
Voltage Load Range: 5.5V to 20V
Package: 14-TSSOP, Exposed Pad
Product Status: Active
