Same model may have multiple batches, images only for reference.

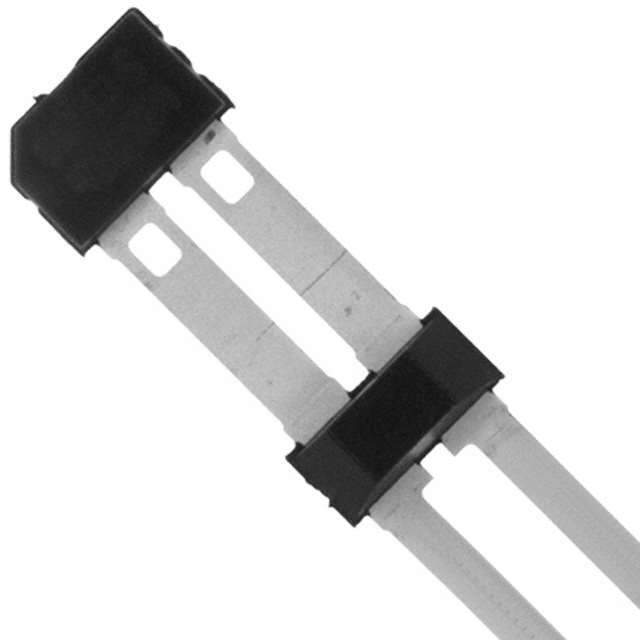

TLE49421CBAMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE49421CBAMA1

Part No TLE49421CBAMA1
Manufacturer Infineon Technologies
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNET SWITCH SPEC PURP SSO-2-2
Datasheet
TLE49421CBAMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Infineon Technologies
Packaging AMMO PACKAGE
Status Active
Purpose Special Purpose
Technology Hall Effect
Supply Voltage - Operating 4.5 V to 20 V
Current - Supply (Max) 16.8mA
Output Type Current Source
Case / Package P-SSO-2-2
Win Source Part Number 120482-TLE49421CBAMA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLE49421CBAMA1 CAD Model

Description

The TLE49421CBAMA1 is a Hall effect sensor from Infineon Technologies designed for sensing magnetic fields.

  • Supply Voltage Range: 4.5V to 20V
  • Maximum Supply Current: 16.8mA
  • Output: Current Source
  • Package: AMMO PACKAGE
  • Category: Sensors, Transducers
  • Case/Package: P-SSO-2-2
  • Purpose: Special purposes
  • Product Status: Active
  • Popularity: Medium
