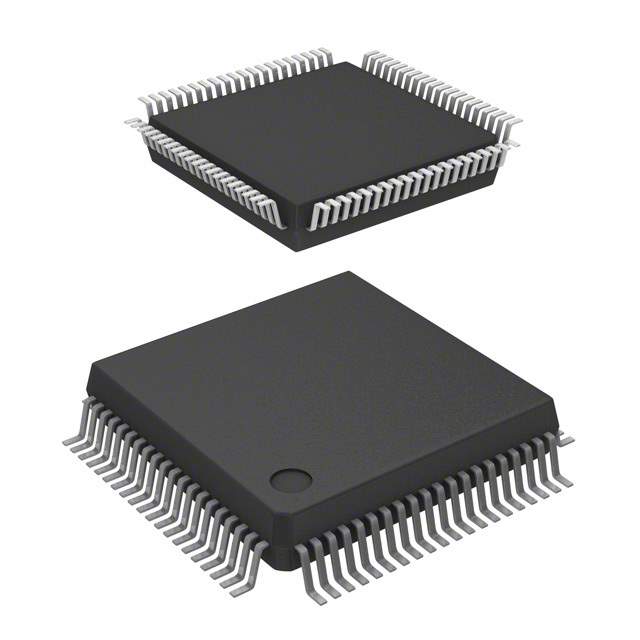

PEF2256HV2.2 Real Image
Same model may have multiple batches, images only for reference.

PEF2256HV2.2

Part No PEF2256HV2.2
Manufacturer Infineon Technologies
Catalog Interface - Telecom
Description IC LIU E1/T1/J1 80MQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tray
Status Obsolete(EOL)
Purpose Framer, Line Interface Unit (LIU)
Number of Circuits 1
Supply Voltage - Operating 1.8V, 3.3V
Operating Supply Current 80mA
Power (Watts) 250mW
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package PG-MQFP-80
Includes Clock Generation, Line Monitor Protection, Power-Down, Receive Line Monitor Mode, Remote Alarm Generation / Checking, Tristate
Win Source Part Number 061404-PEF2256HV2.2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PEF2256HV2.2 CAD Model

Description

The Infineon Technologies PEF2256HV2.2 is a line interface unit (LIU) and framer purpose IC.

  • Package: PG-MQFP-80
  • Mounting: SMD (SMT)
  • Features: clock generation, line monitor protection, power-down, receive line monitor mode, remote alarm generation/checking, and tristate includes
  • Status: obsolete
  • Alternative Cross-Reference: PEF2256HV2.1 and PEF2256HV2X SLL76
  • Supply Voltage: 1.8V and 3.3V
  • Operating Supply Current: 80mA
  • Temperature Range: -40°C to 85°C
  • Package Form: tray
  • Usage: common-used part
  • Popularity: popular
  • Supply and Demand Status: limited
