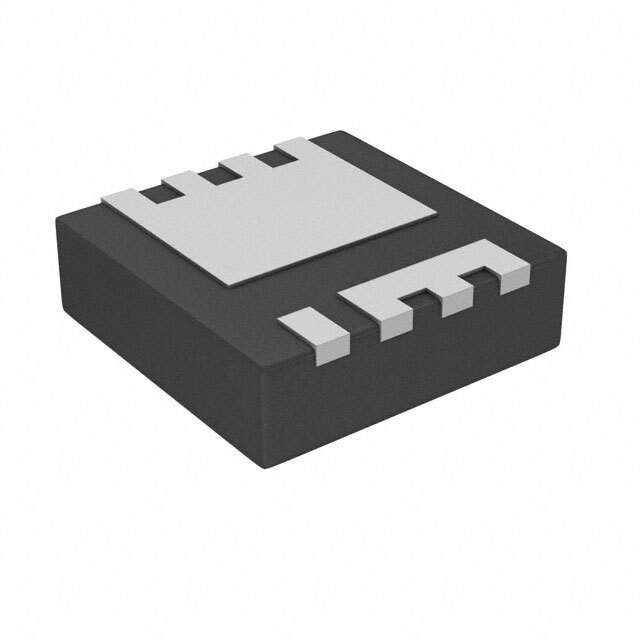

BSZ063N04LS6ATMA1

Name: BSZ063N04LS6ATMA1
Brand: Infineon Technologies
SKU: 992116
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSZ063N04LS6ATMA1
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 15A/40A TSDSON / N-Channel 40 V 15A (Ta), 40A (Tc) 2.5W (Ta), 38W (Tc) Surface Mount PG-TSDSON-8-FL
Datasheet	BSZ063N04LS6ATMA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	OptiMOS™ 6
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	650 pF @ 20 V
Power Dissipation (Max)	2.5W (Ta), 38W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	PG-TSDSON-8-FL
Package / Case	8-PowerTDFN
Base Product Number	BSZ063
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	448-BSZ063N04LS6ATMA1DKR,448-BSZ063N04LS6ATMA1TR,SP001687058,448-BSZ063N04LS6ATMA1CT
Standard Package	5,000
Win Source Part Number	992116-BSZ063N04LS6ATMA1
Ultra Librarian 3D Model	Ultra Librarian BSZ063N04LS6ATMA1 CAD Model

Alternative Products

Description

The BSZ063N04LS6ATMA1 is an N-channel MOSFET designed for power management applications from Infineon Technologies.

Series: OptiMOS™ 6
Drain-Source Voltage: 40V
Continuous Drain Current: 15A (Ta), 40A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 6.3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id: 2.3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs: 9.5 nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 650 pF @ 20V
Maximum Vgs: ±20V
Power Dissipation: 2.5W (Ta), 38W (Tc)
Package: 8-PowerTDFN
