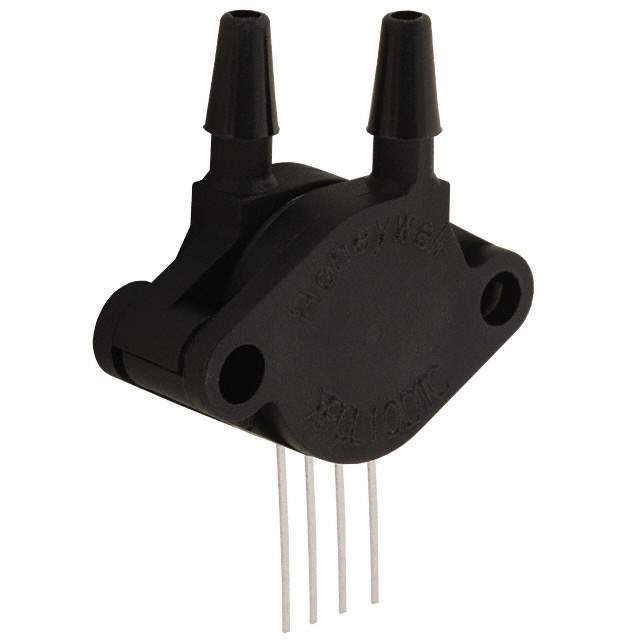

XPCL10DTH Real Image
Same model may have multiple batches, images only for reference.

XPCL10DTH

Part No XPCL10DTH
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 10" H2O 4SIP / Pressure Sensor 0.36PSI (2.49kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 20 mV (12V) 4-SIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series XPCL
Package Tube
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 0.36PSI (2.49kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 20 mV (12V)
Accuracy ±1%
Voltage - Supply 3V ~ 16V
Port Size Male - 0.19" (4.83mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 3PSI (20.68kPa)
Temperature Range - Operating -25°C ~ 85°C
Package / Case 4-SIP Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-2686-5
Standard Package 5
Win Source Part Number 1217312-XPCL10DTH
Ultra Librarian 3D Model Ultra Librarian XPCL10DTH CAD Model

Description

The XPCL10DTH is an obsolete electronic component manufactured by Honeywell Sensing and Productivity Solutions. This component is a pressure sensor/transducer with a Wheatstone Bridge output type and an accuracy of ±1%. This component has a Win Source Part Number of 1217312-XPCL10DTH.
