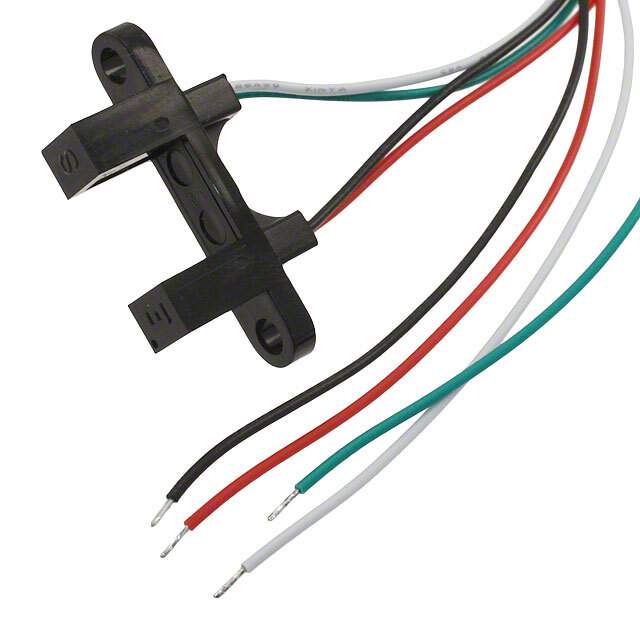

OPB800W55Z Real Image
Same model may have multiple batches, images only for reference.

OPB800W55Z

Part No OPB800W55Z
Manufacturer TT Electronics
Catalog Optical Sensors
Description SENSOR OPT SLOT PHOTOTRANS MODUL / Optical Sensor Through-Beam 0.375" (9.53mm) Phototransistor Module, Pre-Wired
Datasheet
OPB800W55Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr TT Electronics/Optek Technology
Package Bulk
Sensing Distance 0.375" (9.53mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 30 mA
Voltage - Collector Emitter Breakdown (Max) 30 V
Temperature Range - Operating -40°C ~ 80°C
Mounting Type Chassis Mount
Package / Case Module, Pre-Wired
Type Unamplified
Base Product Number OPB800
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1351966-OPB800W55Z
Ultra Librarian 3D Model Ultra Librarian OPB800W55Z CAD Model

Description

The TT Electronics/Optek Technology's OPB800W55Z is a type of unamplified photointerrupter that is designed to be used as an optical sensor.

  • Type: Unamplified Photointerrupter
  • Output: Transistor
  • Packaging: Bulk
  • Standard Package: 100
  • Voltage Collector Emitter Breakdown (Max): 30 V
  • Output Configuration: Phototransistor
  • Sensing Method: Through-Beam
  • Sensing Distance: 0.375" (9.53mm)
  • Mounting Type: Chassis Mount
  • Module: Pre-Wired
  • Temperature Range: -40°C to 80°C
  • Standards: Meets All Necessary Standards
