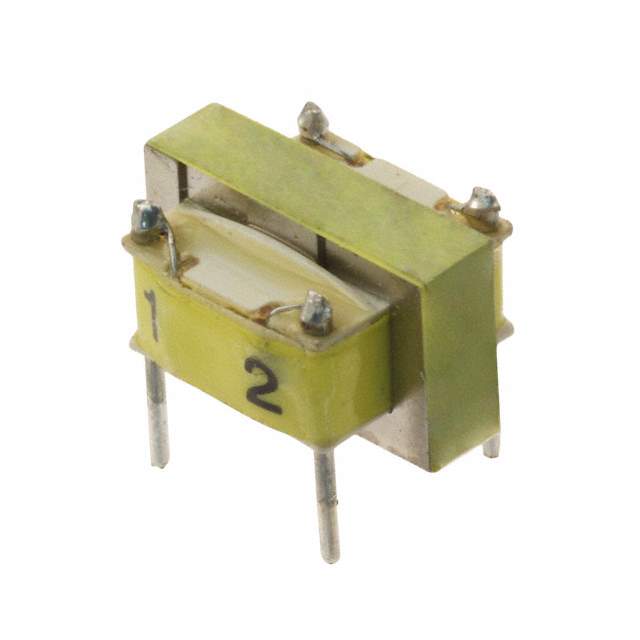

T1104 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Tamura
Standard Package 20
Category Transformers
Family Audio Transformers
Transformer Type Data/Voice Coupling
Impedance 600 Primary 600 Secondary
Insertion Loss 1dB Typ.
Mounting Style Through Hole
Size / Dimension 19.81mm L x 16.61mm W
Height - Seated (Max) 11.91mm
Termination Style PC Pin
Catalog T1104
Win Source Part Number 047483-T1104
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T1104 CAD Model

Description

The Tamura T1104 is a medium-popularity electronic component that has a limited supply and demand status.

  • Component Type: Transformer
  • Function: Data/voice coupling
  • Compatibility: Audio equipment, telecommunication systems, and other electronic devices
  • Key Features: Reliable and efficient performance
  • Benefits: High-quality audio and data transmission
