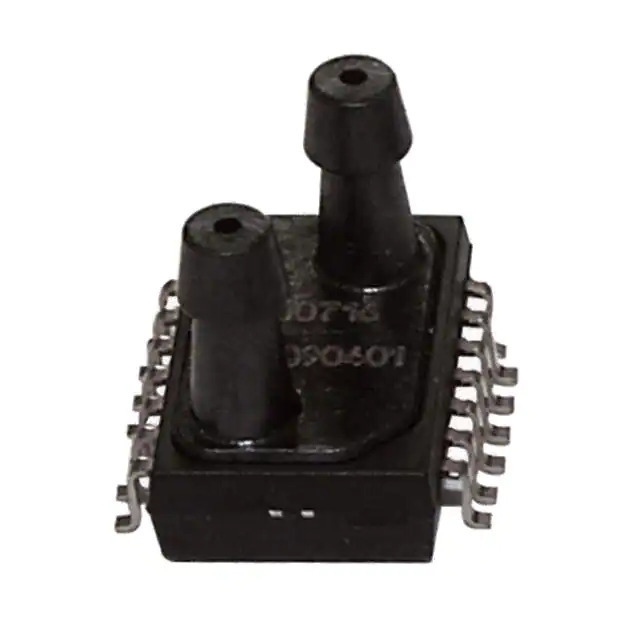

NPA-700B-005D Amphenol
Same model may have multiple batches, images only for reference.

NPA-700B-005D

Part No NPA-700B-005D
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSID 0.12" 14BIT / Pressure Sensor 5PSI (34.47kPa) Differential Male - 0.12" (3mm) Tube, Dual 14 b 14-SOIC Module, Top Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Amphenol NovaSensor
Series NPA-700
Package Tape & Reel
Product Status Active
Applications Board Mount
Pressure Type Differential
Operating Pressure 5PSI (34.47kPa)
Output Type I²C
Output 14 b
Accuracy ±1.5%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-SOIC Module, Top Port
Supplier Device Package -
Base Product Number NPA-700B
MSL Level 5A (24 Hours)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1355215-NPA-700B-005D
Ultra Librarian 3D Model Ultra Librarian NPA-700B-005D CAD Model

Description

The NPA-700 pressure sensor is a surface mount module with a 14-SOIC package and top port from Amphenol NovaSensor.

  • Temperature Range: -40°C to 125°C
  • Pressure Range: 5PSI (34.47kPa) to 60PSI (413.69kPa)
  • Temperature Compensated: Yes
  • Output Resolution: 14 bits
  • Output Type: I²C
  • Voltage Supply: 4.75V to 5.25V
  • Suitable for: Board mount applications.
