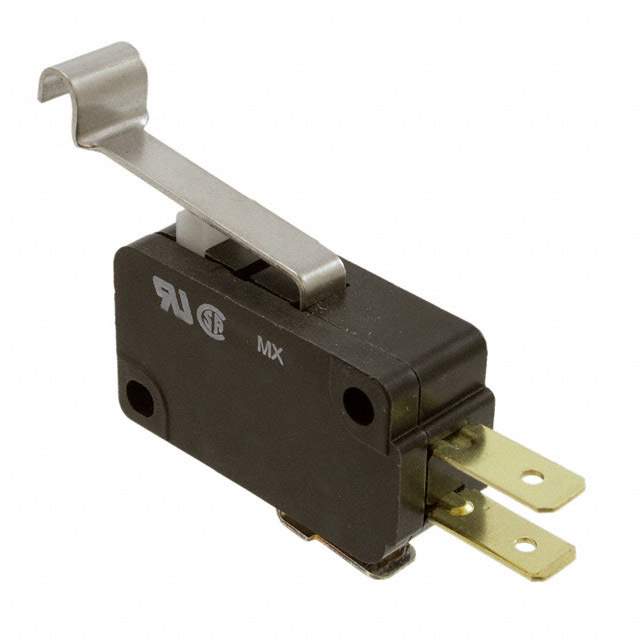

V7-1C17D8-294 Real Image
Same model may have multiple batches, images only for reference.

V7-1C17D8-294

Part No V7-1C17D8-294
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Datasheet
V7-1C17D8-294 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V7
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 86gf
Release Force 9.000gf
Pretravel 0.120" (3.0mm)
Differential Travel 0.027" (0.7mm)
Overtravel 0.068" (1.73mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.806" (20.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number V7-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names V71C17D8294,480-5242,V7-1C17D8-294-ND
Standard Package 100
Win Source Part Number 1205938-V7-1C17D8-294
Ultra Librarian 3D Model Ultra Librarian V7-1C17D8-294 CAD Model

Description

The V7-1C17D8-294 is a high-quality limit switch that comes with a quick connect termination style of 0.187" (4.7mm).

  • Termination Style: quick connect
  • Switch Function: SPDT
  • Actuator Type: lever, simulated roller
  • Electrical Life: 100,000 cycles
  • Operating Force: 86gf
  • Mechanical Life: 10,000,000 cycles
  • Release Force: 9.000gf
  • Pretravel: 0.120" (3.0mm)
  • Differential Travel: 0.027" (0.7mm)
  • Overtravel: 0.068" (1.73mm)
  • Operating Position: 0.806" (20.5mm)
  • Mounting Type: chassis mount
  • Temperature Range (Operating): -40°C ~ 85°C
  • ECCN: EAR99
  • Category: switches and limit switches
