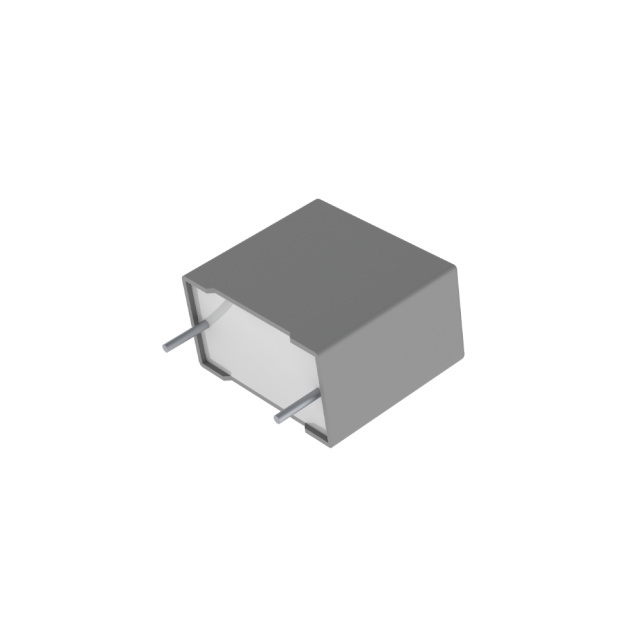

Same model may have multiple batches, images only for reference.
R76TI1470SE30J Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R76TI1470SE30J

Part No R76TI1470SE30J
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 4700PF 5% 1.6KVDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 4700 pF
Tolerance ±5%
Voltage Rating - AC 650V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 135 mOhms
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.197" W (18.00mm x 5.00mm)
Height - Seated (Max) 0.437" (11.10mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1522221-R76TI1470SE30J
Ultra Librarian 3D Model Ultra Librarian R76TI1470SE30J CAD Model
