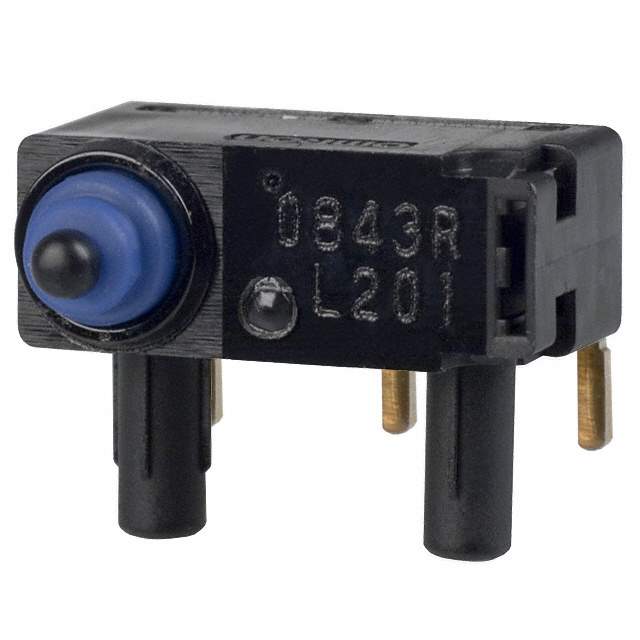

D2HW-BL201DL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D2HW
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC), 2A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 12 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Features Support Posts
Operating Force 76gf
Release Force 10gf
Differential Travel 0.010" (0.25mm)
Overtravel 0.055" (1.4mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.250" (6.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number D2HW
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D2HWBL201DLBYOMR,D2HWBL201DL,SW715
Standard Package 250
Win Source Part Number 1177958-D2HW-BL201DL
Ultra Librarian 3D Model Ultra Librarian D2HW-BL201DL CAD Model

Description

The D2HW-BL201DL is a high-quality limit switch from Omron Electronics Inc-EMC Div that has a long mechanical life of 1,000,000 cycles.

  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (pin plunger)
  • Operating Position: 0.250" (6.4mm)
  • Ingress Protection: IP67
  • Voltage Rating (AC): 125V AC
  • Voltage Rating (DC): 12V DC
  • Current Rating (AC): 100mA (AC)
  • Current Rating (DC): 2A (DC)
