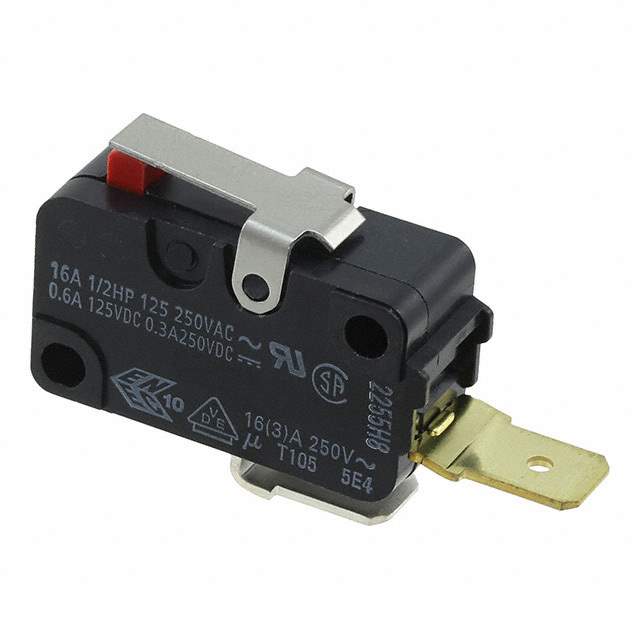

D3V-163-3C5 Real Image
Same model may have multiple batches, images only for reference.

D3V-163-3C5

Part No D3V-163-3C5
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 16A 250V / Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D3V
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 16A (AC) , 10A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP40
Operating Force 70gf
Release Force 6.118gf
Operating Position 0.600" (15.2mm)
Pretravel 0.354" (9.0mm)
Differential Travel 0.110" (2.8mm)
Overtravel 0.079" (2.0mm)
Temperature Range - Operating -25°C ~ 105°C
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D3V
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 1339355-D3V-163-3C5
Ultra Librarian 3D Model Ultra Librarian D3V-163-3C5 CAD Model

Description

The D3V series limit switch is a single-pole single-throw normally open (SPST-NO) circuit with an off-mom switch function.

  • Series: D3V
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Voltage Rating (AC): 250V
  • Voltage Rating (DC): 30V
  • Current Rating (AC): 16A
  • Current Rating (DC): 10A
  • Termination Style: Quick Connect (0.250" / 6.3mm)
  • Packaging: Bulk
  • Ingress Protection: IP40
  • Actuator Type: Lever, Straight
  • Operating Force: 70gf
  • Mechanical Life: 10,000,000 Cycles
  • Electrical Life: 100,000 Cycles
  • Release Force: 6.118gf
  • Pretravel: 0.354" (9.0mm)
  • Differential Travel: 0.110" (2.8mm)
  • Overtravel: 0.079" (2.0mm)
  • Operating Position: 0.600" (15.2mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature: -25°C to 105°C
  • Manufacturer: Omron Electronics Inc-EMC Div
  • Base Product Number: D3V
