Same model may have multiple batches, images only for reference.

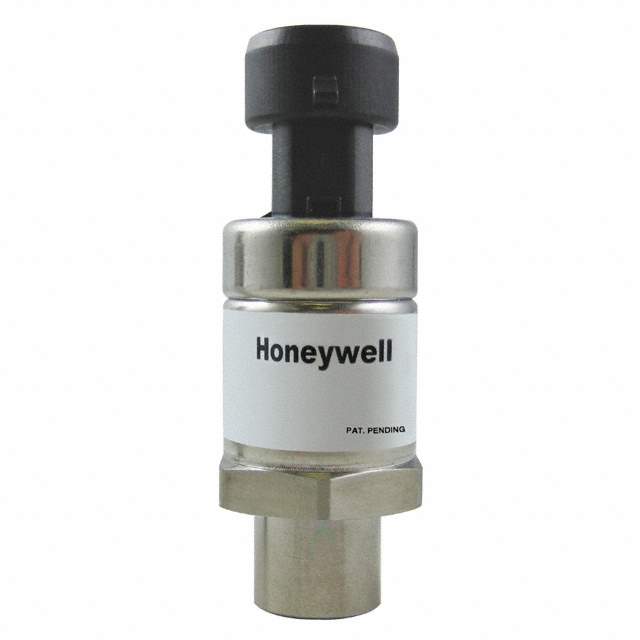

PX2AF1XX150PAAAX Real Image
Same model may have multiple batches, images only for reference.

PX2AF1XX150PAAAX

Part No PX2AF1XX150PAAAX
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description PRESSURE TRANSDUCER PSIA 150PSI /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series PX2
Package Bulk
Applications Industrial Automation
Pressure Type Absolute
Operating Pressure 150PSI (1034.21kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Female - 7/16" (11.11mm) UNF Schrader
Port Style Threaded
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 450PSI (3102.64kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case Cylinder
Base Product Number PX2AF1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Names 480-3839,2266-PX2AF1XX150PAAAX
Standard Package 40
Win Source Part Number 1062652-PX2AF1XX150PAAAX
Ultra Librarian 3D Model Ultra Librarian PX2AF1XX150PAAAX CAD Model

Description

The Honeywell PX2AF1XX150PAAAX is a pressure sensor designed for industrial automation applications.

  • Output: Analog Voltage 0.5 V to 4.5 V
  • Accuracy: ±0.25%
  • Pressure: 150 PSI (1034.21kPa)
  • Maximum Pressure: 450PSI (3102.64kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Port: Female 7/16" (11.11mm) UNF Schrader
  • Package: Cylinder
  • Series: PX2
  • Supplier: Honeywell Sensing and Productivity Solutions
