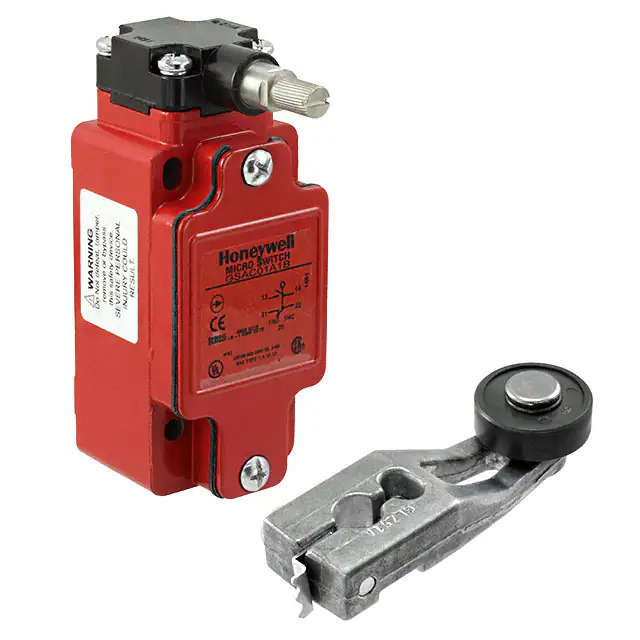

GSAC06A1B Honeywell
Same model may have multiple batches, images only for reference.

GSAC06A1B

Part No GSAC06A1B
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT DPST-NC 6A 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series GSA
Package Bulk
Product Status Obsolete
Circuit DPST-NC
Switch Function On-Mom
Current Rating (Amps) 6A (AC), 2.8A (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 24 V
Actuator Type Side Rotary, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Features Metal Roller
Operating Force 33gfm
Release Force 39gfm
Operating Position 2.638" (67.0mm)
Pretravel -
Differential Travel 12°
Overtravel 85°
Temperature Range - Operating -40°C ~ 85°C
Electrical Life -
Mechanical Life -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1378528-GSAC06A1B
Ultra Librarian 3D Model Ultra Librarian GSAC06A1B CAD Model

Description

The GSAC06A1B is a limit switch manufactured by Honeywell Sensing and Productivity Solutions.

  • Series: GSA
  • Mounting Configuration: Chassis mount
  • Current Rating (AC): 6A
  • Current Rating (DC): 2.8A
  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 24V
  • Actuator: Metal roller actuator
  • Ingress Protection: IP67
  • Operation: On-mom
  • Actuator Type: Side rotary, roller
  • Termination: Screw terminals
  • Operating Force: 33gfm
  • Product Status: Obsolete
  • HTSUS Code: 8536.50.7000
  • ECCN: EAR99
