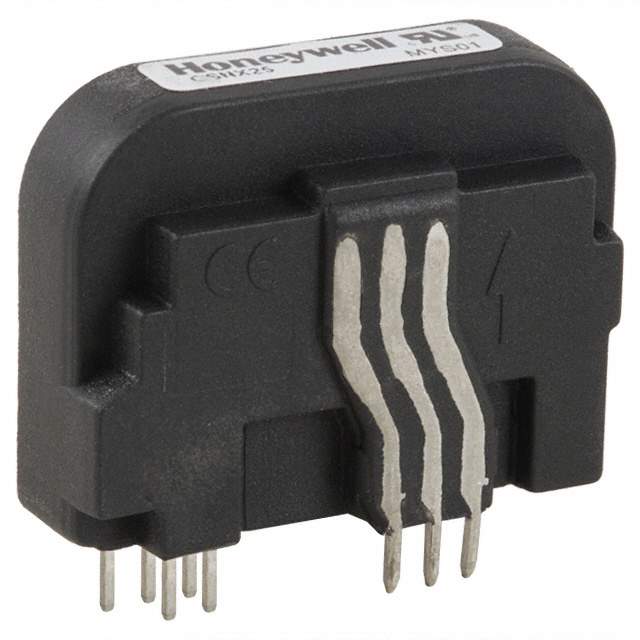

CSNX25 Real Image
Same model may have multiple batches, images only for reference.

CSNX25

Part No CSNX25
Manufacturer Honeywell
Catalog Current Transducers
Description SENSOR CURRENT MR 56A AC/DC
Datasheet
CSNX25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Magnetoresistive, Open Loop
Current - Sensing 56A
Number of Channels 1
Output Ratiometric, Current
Accuracy ±0.24%
Supply Voltage - Operating 4.75 V to 5.25 V
Response Time 0.2μs
Current - Supply (Max) 12mA
Temperature Range - Operating -40°C to 85°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module, Single Pass Through
Win Source Part Number 1030724-CSNX25
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSNX25 CAD Model

Description

The 1030724-CSNX25 is a magnetic, open loop sensor module manufactured by Honeywell Sensing and Productivity Solutions.

  • Response Time: 0.2μs
  • Mounting Type: Through Hole
  • Output: Ratiometric, Current with Bidirectional Polarization
  • Current Supply (max): 12mA
  • Channels: One
  • Current Sensing: 56A with an accuracy of ±0.24%
  • Category: Sensors and Transducers
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 4.75 V to 5.25 V
  • Dimension: Module, Single Pass Through
  • Supply and Demand Status: Balanced
