Part No BZ-RX
Manufacturer Honeywell
Catalog Snap Action, Limit Switches

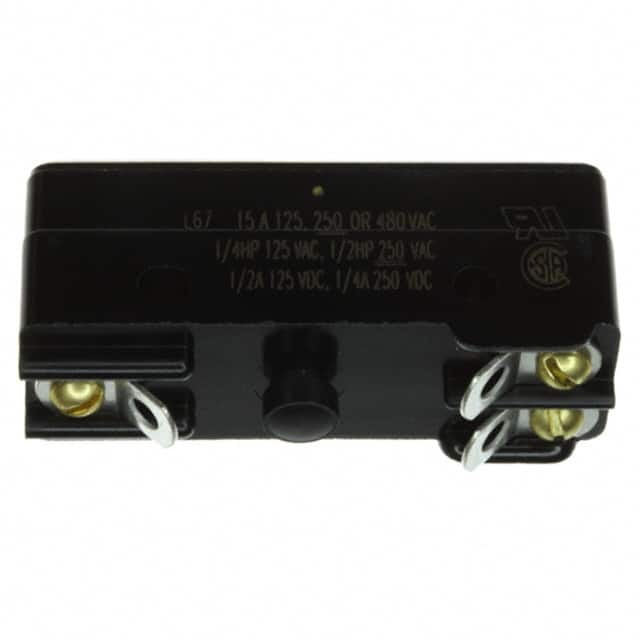

Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Datasheet
BZ-RX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Honeywell
Series BZ
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Solder Lug
Features Reset Plunger on Bottom
Operating Force 198 ~ 255gf
Operating Position 0.625" (15.9mm)
Pretravel 0.012" (0.3mm)
Overtravel 0.005" (0.13mm)
Temperature Range - Operating -55°C ~ 85°C
Mechanical Life 20,000,000 Cycles
Base Product Number BZ-R
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 847121-BZ-RX
Ultra Librarian 3D Model Ultra Librarian BZ-RX CAD Model

Description

The 847121-BZ-RX is a limit switch from the BZ series manufactured by Honeywell.

  • Termination Style: Solder Lug
  • Features: Reset Plunger on Bottom
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 125 V
  • Circuit: SPDT
  • Mechanical Life: 20,000,000 Cycles
  • Operating Temperature: -55°C ~ 85°C
