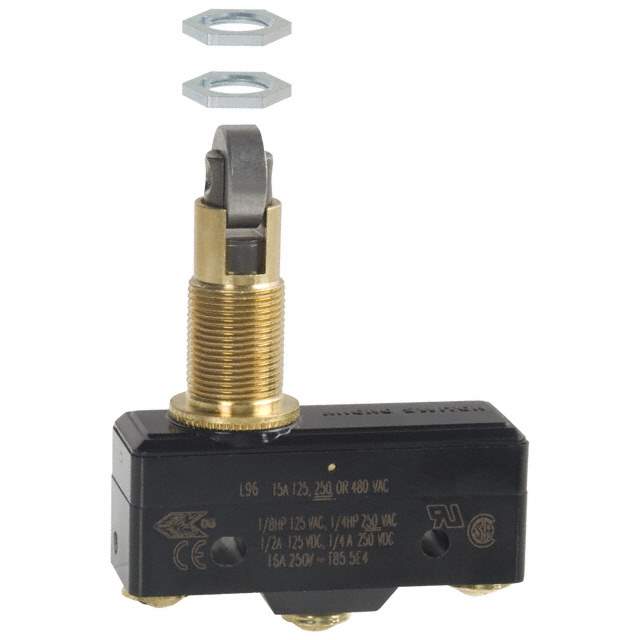

BZ-2RQ181-A2 Real Image
Same model may have multiple batches, images only for reference.

BZ-2RQ181-A2

Part No BZ-2RQ181-A2
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch Snap Action N.O./N.C. SPDT High Overtravel Plunger 15A 125VAC 3.61N Panel Mount Screw Automotive
Datasheet
BZ-2RQ181-A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Honeywell Sensing and Productivity Solutions
Series BZ
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 15A (AC), 500mA (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Actuator Type Roller Plunger
Mounting Panel Mount
Termination Style Screw Terminal
Operating Force, Torque 255 ~ 368gf
Release Force 113gf
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.141" (3.6mm)
Operating Position 1.313" (33.4mm)
Mechanical Life 20,000,000 Cycles
Operating Temperature Range -55°C ~ 85°C
Win Source Part Number 770755-BZ-2RQ181-A2
Popularity Medium
Supply and Demand Status Limited
Family Name BZ
Introduction Date December 20, 1995
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian BZ-2RQ181-A2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions BZ-2RQ181-A2 is a panel mount SPDT switch.

  • Series: BZ
  • Termination Style: Screw Terminal
  • Temperature Range: -55°C to 85°C
  • Current Rating: 15A (AC), 500mA (DC)
  • Voltage Rating: 125V (AC), 125V (DC)
  • Mounting: Panel Mount
  • Mechanical Life: 20,000,000 cycles
  • Operating Force: 255 ~ 368gf
  • Supply Status: Limited
  • ECCN: EAR99
  • Estimated EOL Date: 2025
