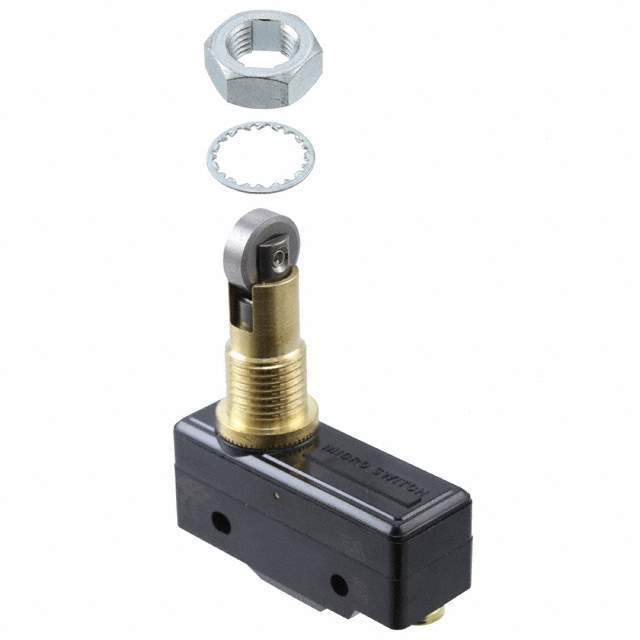

BZ-2RQ785 Real Image
Same model may have multiple batches, images only for reference.

BZ-2RQ785

Part No BZ-2RQ785
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Panel Mount
Datasheet
BZ-2RQ785 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series BZ
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Cross Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Operating Force 255 ~ 368gf
Release Force 113gf
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.141" (3.6mm)
Temperature Range - Operating -55°C ~ 85°C
Operating Position 1.953" (49.6mm)
Mechanical Life 20,000,000 Cycles
Base Product Number BZ-2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names 480-3216,2266-BZ-2RQ785,BZ2RQ785
Standard Package 50
Win Source Part Number 1086584-BZ-2RQ785
Ultra Librarian 3D Model Ultra Librarian BZ-2RQ785 CAD Model

Description

The Honeywell Sensing and Productivity Solutions limit switch is a versatile and reliable option for many applications.

  • Series: BZ
  • Standard Package: 50
  • Voltage Rating: 125V AC/DC
  • Operating Temperature Range: -55°C to 85°C
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Cross Roller Plunger
  • Operating Force: 255 ~ 368gf
  • Mechanical Life: 20,000,000 cycles
  • Release Force: 113gf
  • RoHS Compliant: Yes
