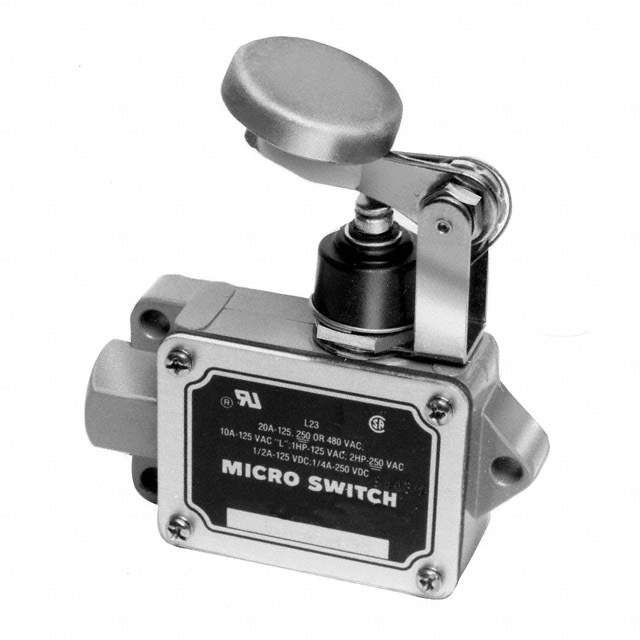

BZF1-2RN2-LH Real Image
Same model may have multiple batches, images only for reference.

BZF1-2RN2-LH

Part No BZF1-2RN2-LH
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Datasheet
BZF1-2RN2-LH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series BZF
Package Bulk
Product Status Not For New Designs
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Features Actuator Seal Boot
Operating Force 907gf
Release Force 113gf
Pretravel 0.219" (5.6mm)
Differential Travel 0.008" (0.2mm)
Overtravel 0.219" (5.6mm)
Base Product Number BZF1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names 480-4742,BZF12RN2LH,BZF1-2RN2-LH-ND
Standard Package 1
Win Source Part Number 1050217-BZF1-2RN2-LH
Ultra Librarian 3D Model Ultra Librarian BZF1-2RN2-LH CAD Model

Description

The Honeywell Sensing and Productivity Solutions BZF1-2RN2-LH is a high-quality limit switch designed for use in a variety of electronic applications.

  • Current Rating: 15A (AC)
  • Current Rating: 500mA (DC)
