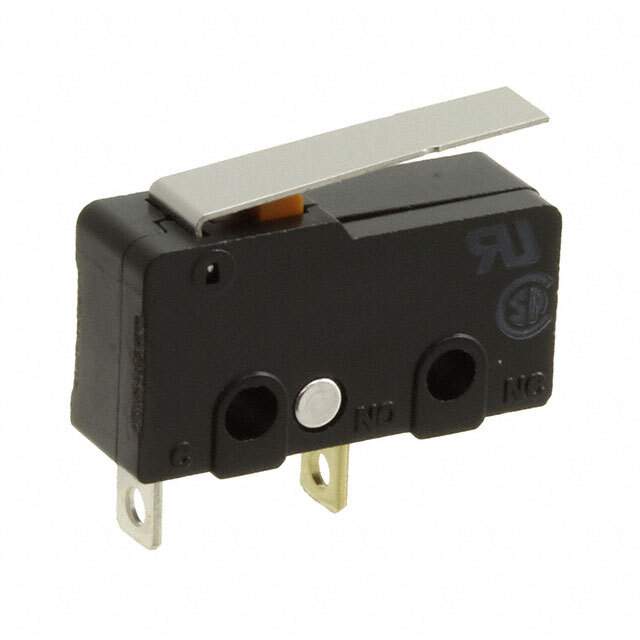

SS-01GL-F-3 Real Image
Same model may have multiple batches, images only for reference.

SS-01GL-F-3

Part No SS-01GL-F-3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP SPST-NO 100MA 125V / Switch SPST-NO Chassis Mount
Datasheet
SS-01GL-F-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names SS01GLF3,Z4558,-SS-01GL-F-3,SS-01GL-F-3-ND,SS01GLF3BYOMI
Standard Package 500
Win Source Part Number 1095987-SS-01GL-F-3
Ultra Librarian 3D Model Ultra Librarian SS-01GL-F-3 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL-F-3 is a SPST-NO switch that is designed for chassis mount applications.

  • Voltage Rating: 125V AC and 30V DC
  • Operating Force: 16gf
  • Supply and Demand Status: Balanced
  • Switch Function: Off-Mom
  • Actuator Type: Lever, straight
