Same model may have multiple batches, images only for reference.

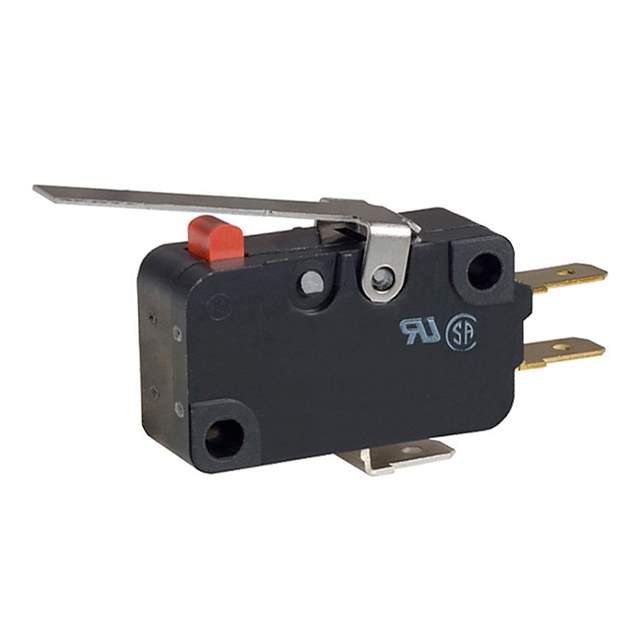

D3V-11G1M-2C24-K Real Image
Same model may have multiple batches, images only for reference.

D3V-11G1M-2C24-K

Part No D3V-11G1M-2C24-K
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 11A 250V / Switch SPST-NC Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series D3V
Package Bulk
Circuit SPST-NC
Switch Function On-Mom
Current Rating (Amps) 11A (AC), 6A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection IP40
Operating Force 100gf
Release Force 15gf
Pretravel 0.063" (1.6mm)
Differential Travel 0.020" (0.5mm)
Overtravel 0.031" (0.79mm)
Temperature Range - Operating -25°C ~ 105°C
Operating Position 0.600" (15.2mm)
Electrical Life 200,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number D3V
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Other Names D3V-11G1M-2C24-K-ND,Z10782,D3V11G1M2C24K
Standard Package 100
Win Source Part Number 1073467-D3V-11G1M-2C24-K
Ultra Librarian 3D Model Ultra Librarian D3V-11G1M-2C24-K CAD Model

Description

The D3V series limit switch is a high-quality switch used in various industrial applications.

  • Manufacturer: Unknown
  • Series: D3V
  • Termination Style: Quick connect
  • Connector Size: 0.187-inch (4.7mm)
  • Ingress Protection: IP40
  • Voltage Rating: 250V AC and 30V DC
  • Circuit: SPST-NC
  • Switch Function: On-Mom
  • Actuator Type: Straight lever
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Force: 100gf
  • Release Force: 15gf
  • Pretravel: 0.063 inches (1.6mm)
  • Differential Travel: 0.020 inches (0.5mm)
  • Overtravel: 0.031 inches (0.79mm)
  • Operating Position: 0.600 inches (15.2mm)
  • Mounting: Chassis mount
  • Operating Temperature Range: -25°C to 105°C
  • Product: D3V-11G1M-2C24-K
