Same model may have multiple batches, images only for reference.

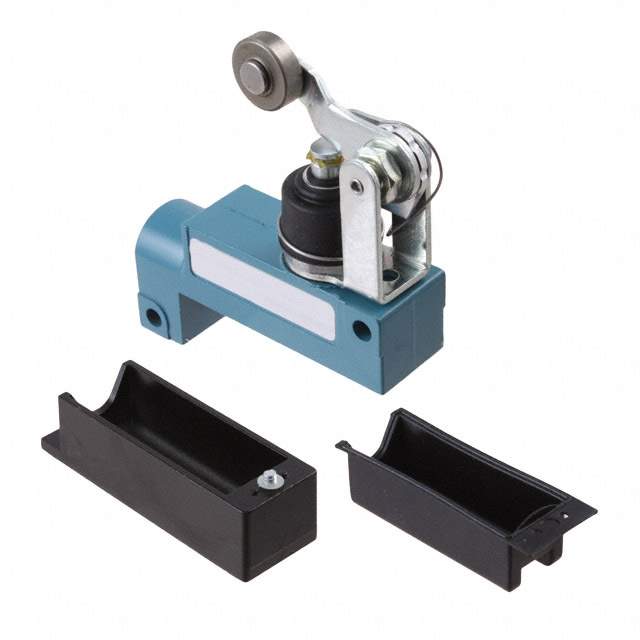

BZG1-2RN2 Real Image
Same model may have multiple batches, images only for reference.

BZG1-2RN2

Part No BZG1-2RN2
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series BZG
Package Bulk
Product Status Not For New Designs
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Features Actuator Seal Boot
Operating Force 283 ~ 567gf
Release Force 113gf
Pretravel 0.188" (4.8mm)
Differential Travel 0.006" (0.15mm)
Overtravel 0.219" (5.6mm)
Temperature Range - Operating -32°C ~ 71°C
Base Product Number BZG1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Other Names 480-3712,2266-BZG1-2RN2,BZG1-2RN2-ND,BZG12RN2
Standard Package 1
Win Source Part Number 1050249-BZG1-2RN2
Ultra Librarian 3D Model Ultra Librarian BZG1-2RN2 CAD Model

Description

The Honeywell Sensing and Productivity Solutions limit switch is a reliable and durable option for many applications.

  • Series: BZG1
  • Standard Package: 1
  • Voltage Rating: 125V AC/DC
  • Operating Temperature Range: -32°C to 71°C
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, roller
  • Actuator Seal Boot: Yes
  • Operating Force: 283 ~ 567gf
  • Differential Travel: 0.006" (0.15mm)
  • RoHS Compliant: Yes
  • Manufacturer: Honeywell Sensing and Productivity Solutions
