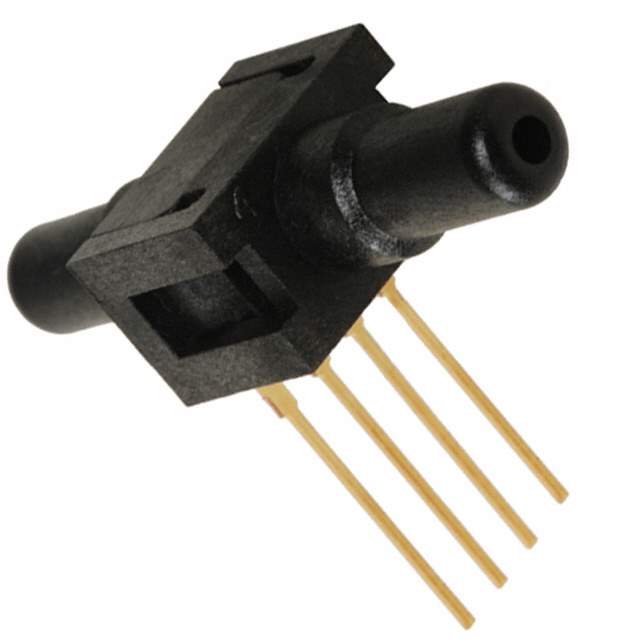

26PCBFA6D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Applications Board Mount
Pressure Type Differential
Operating Pressure ±5PSI (±34.47kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 50 mV (10V)
Accuracy ±0.5%
Supply Voltage (V) 2.5V ~ 16V
Port Size Male - 0.2" (5mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±20PSI (±137.9kPa)
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 4-SIP Module
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1123424-26PCBFA6D
Manufacturer Homepage www.inertialsensor.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26PCBFA6D CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1123424-26PCBFA6D is a differential pressure sensor used in board mount applications. Bold the product name (e.g., BAV99S,135 → 1123424-26PCBFA6D) and manufacturer (e.g., Nexperia USA Inc. → Honeywell Sensing and Productivity Solutions).

  • Application: Board Mount
  • Feature: Temperature Compensated
  • Output Type: Wheatstone Bridge
  • Operating Pressure: ±5PSI (±34.47kPa)
  • Maximum Pressure: ±20PSI (±137.9kPa)
  • Port Size: Male - 0.2 inches (5mm) tube, dual
  • Port Style: Barbless
