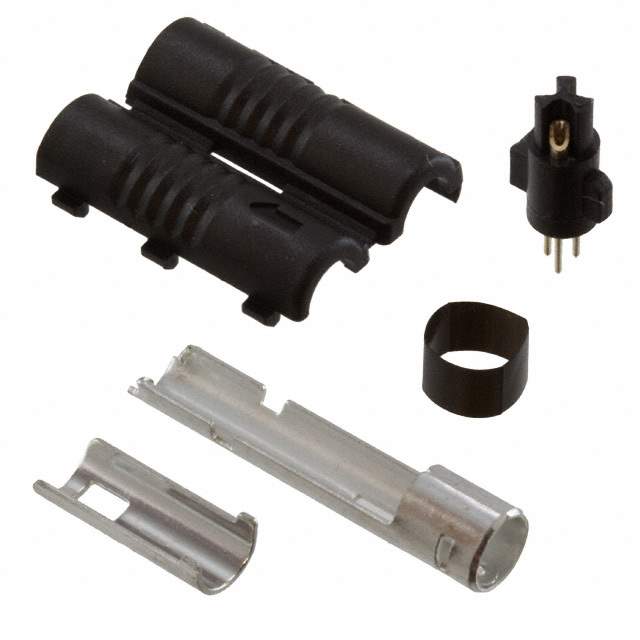

SR38-4P-3P(71) Real Image
Same model may have multiple batches, images only for reference.

SR38-4P-3P(71)

Part No SR38-4P-3P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Datasheet
SR38-4P-3P(71) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR38
Package Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 3
Shell Size - Insert 4
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Snap-In
Orientation Keyed
Primary Material Metal
Shell Material Brass
Shell Finish Tin
Contact Finish - Mating Silver
Color Black, Silver
Material Flammability Rating UL94 V-0
Features Backshell
Shielding Shielded
Current Rating (Amps) 0.5A
Voltage Rating 30VAC, 42VDC
Temperature Range - Operating -15°C ~ 60°C
Backshell Material, Plating Polypropylene (PP)
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Polybutylene Terephthalate (PBT)
Other Names *SR38-4P-3P(71),1030372271,HR1834,SR384P3P71
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294197-SR38-4P-3P(71)
Ultra Librarian 3D Model Ultra Librarian SR38-4P-3P(71) CAD Model

Description

The SR38 series of connectors from Hirose Electric Co Ltd is designed for use in circular connectors.

  • Positions: 3
  • Color: Black and Silver
  • Features: Backshell
  • Connector Type: Plug, Male Pins
  • Termination: Solder Cup
  • Fastening Type: Snap-In
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 30VAC, 42VDC
  • Shielding: Shielded
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 20
  • Shell Size - Insert: 4
  • Contact Finish - Mating: Silver
  • Contact Finish Thickness - Mating: 78.7µin (2.00µm)
  • Mounting Type: Free Hanging (In-Line)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4020
