Same model may have multiple batches, images only for reference.

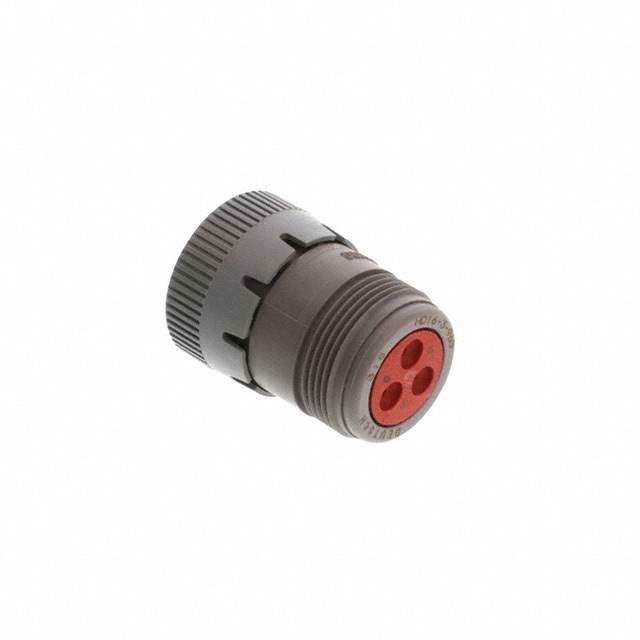

HD16-3-96S Real Image
Same model may have multiple batches, images only for reference.

HD16-3-96S

Part No HD16-3-96S
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN PLUG HSG FMALE 3POS INLINE / 3 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity Deutsch Connectors
Series HD10
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 3
Shell Size - Insert 3-96
Contact Type Crimp
Contact Size 16
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA), Nylon, Glass Filled
Housing Color Gray
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Base Product Number HD16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names 1734-1302,-HD16-3-96S-SI
Standard Package 1
Win Source Part Number 1186652-HD16-3-96S
Ultra Librarian 3D Model Ultra Librarian HD16-3-96S CAD Model

Description

The TE Connectivity Deutsch Connectors HD16-3-96S is a circular connector housing designed for female sockets.

  • Connector Type: Circular Connector Housing
  • Gender: Female Sockets
  • Fastening Type: Bayonet Lock
  • Feature: Coupling Nut
  • Shell Material: Polyamide (PA), Nylon, Glass-Filled
  • Flammability Rating: UL94 V-1
  • Ingress Protection: IP68 (Dust-Tight and Waterproof)
  • RoHS Compliant: Yes
  • Operating Temperature: -40 to 125 °C
  • Mounting Type: Free-Hanging (In-Line)
  • Shell Size: 3-96
