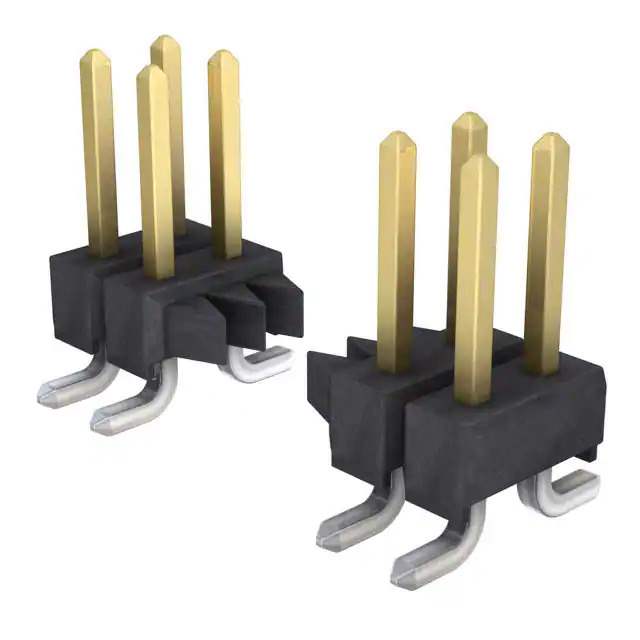

M20-8760842R Real Image
Same model may have multiple batches, images only for reference.

M20-8760842R

Part No M20-8760842R
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HDR 2.54MM SMT 16POS / Connector Header Surface Mount 16 position 0.100" (2.54mm)
Datasheet
M20-8760842R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series M20
Package Tape & Reel
Product Status Active
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.228" (5.80mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250VAC/DC
Base Product Number M20-876
Standard Package 350 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 811806-M20-8760842R
Ultra Librarian 3D Model Ultra Librarian M20-8760842R CAD Model

Description

The M20-8760842R Header is a versatile connector for use in electronic circuits.

  • Series: M20
  • Positions: 16
  • Design: Cuttable
  • Contact Type: Male Pin
  • Termination: Solder
  • Material: Brass
  • Voltage Rating: 250VAC/DC
  • Packaging: Tape and Reel
  • Standard Package: 350 Pieces
