Products specifications

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (M3)
Termination Solder Cup
Shell Material, Finish Brass, Tin Plated
Contact Finish Gold or Gold-Palladium
Contact Finish Thickness 30.0µin (0.76µm)
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Grounding Indents
Contact Form Machined
Dielectric Material Thermoplastic, Glass Filled
Wire Gauge 20 AWG
Contact Material Copper Alloy
Temperature Range - Operating -25°C ~ 70°C
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350237-09675099615
Ultra Librarian 3D Model Ultra Librarian 09675099615 CAD Model

Description

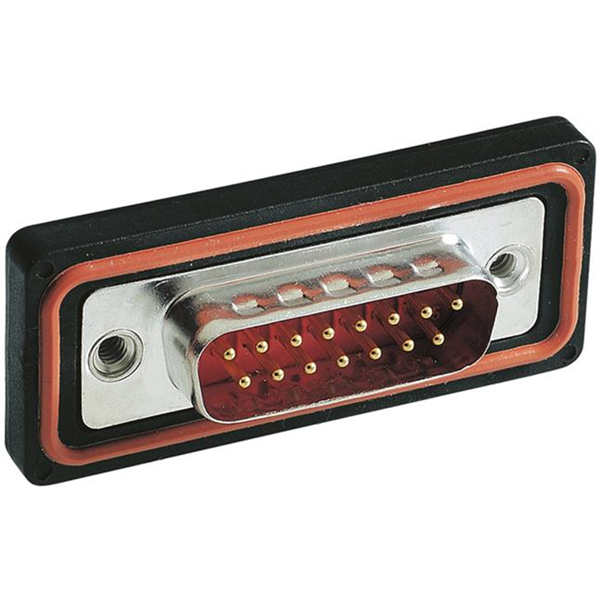

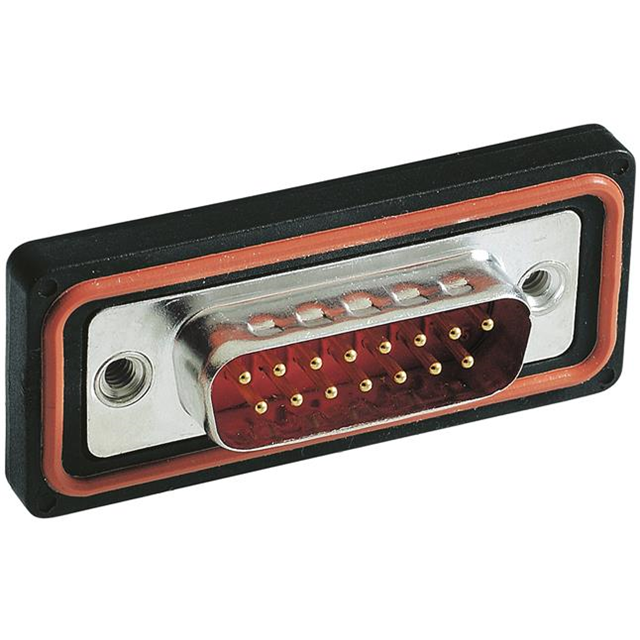

The HARTING 1350237-09675099615 is a D-sub connector assembly with 9 positions.

  • Connector Type: Plug, Male Pins
  • Termination: Solder Cup
  • Contact Type: Signal
  • Grounding Indent: Yes
  • Number of Rows: 2
  • Wire Gauge: 20 AWG
  • Contact Material: Copper Alloy
  • Shell Material: Brass, Tin Plated
  • Shell Size: 1 (DE, E)
  • Connector Layout: 1
  • Ingress Protection: IP67
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 70°C
  • Package: Bulk
  • Standard Package: 50 Units
