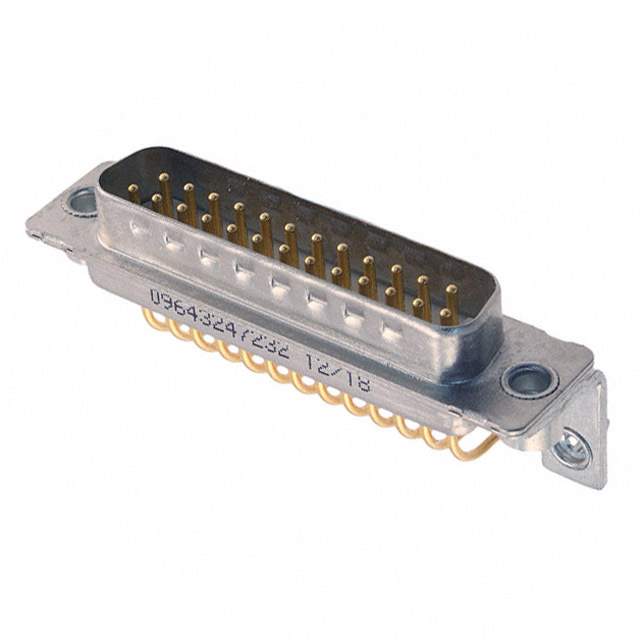

09643247232 Real Image
Same model may have multiple batches, images only for reference.

09643247232

Part No 09643247232
Manufacturer HARTING
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25POS R/A SLDR / 25 Position D-Sub Plug, Male Pins Connector
Datasheet
09643247232 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr HARTING
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Board Lock, Filter, Grounding Indents, Mounting Brackets
Voltage Rating 100V
Color Natural
Contact Form Machined
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Contact Material Copper Alloy
Temperature Range - Operating -20°C ~ 125°C
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349307-09643247232
Ultra Librarian 3D Model Ultra Librarian 09643247232 CAD Model

Description

The 1349307-09643247232 is a 25-position D-sub connector assembly from HARTING.

  • Position: 25
  • Color: Natural
  • Gender: Male
  • Type: Plug
  • Number of Rows: 2
  • Termination: Solder
  • Voltage Rating: 100V
  • Current Rating: 7.5A
  • Operating Temperature: -20°C to 125°C
  • Features: Board Lock, Filter, Grounding Indents, Mounting Brackets
