Same model may have multiple batches, images only for reference.

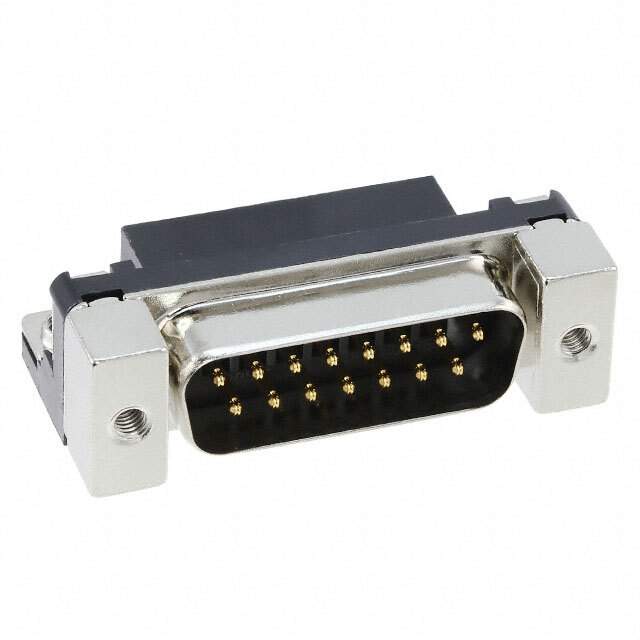

RDAD-15P-LN(55) Real Image
Same model may have multiple batches, images only for reference.

RDAD-15P-LN(55)

Part No RDAD-15P-LN(55)
Manufacturer Hirose Electric Co Ltd
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS R/A SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Hirose Electric Co Ltd
Series RD*D
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 85°C
Base Product Number RDAD
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352000-RDAD-15P-LN(55)
Ultra Librarian 3D Model Ultra Librarian RDAD-15P-LN(55) CAD Model

Description

The RDAD-15P-LN(55) connector is part of the RD*D series of connectors from Hirose Electric Co Ltd.

  • Positions: 15
  • Voltage Rating: 350V
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Termination: Gold
  • Height Above Board: 0.157" (4.00mm)
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C ~ 85°C
  • Status: Obsolete
