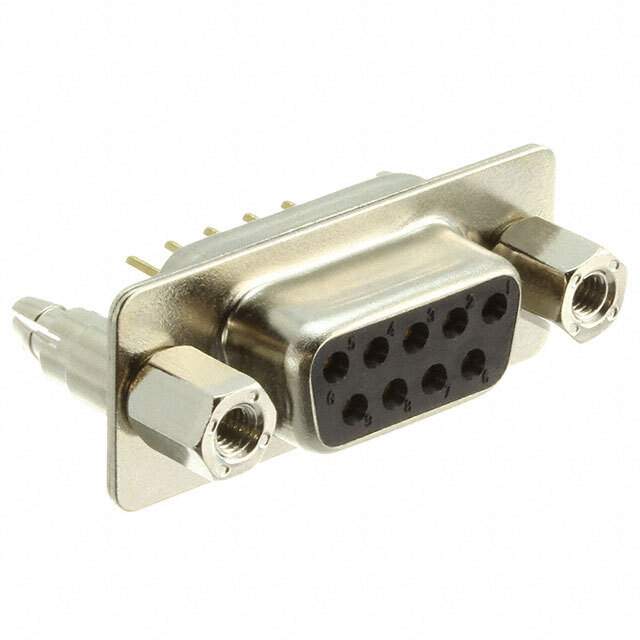

XM2F-0940-112L Real Image
Same model may have multiple batches, images only for reference.

XM2F-0940-112L

Part No XM2F-0940-112L
Manufacturer Omron
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS VERT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Omron Electronics Inc-EMC Div
Series XM2F
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -25°C ~ 105°C
Base Product Number XM2F
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352319-XM2F-0940-112L
Ultra Librarian 3D Model Ultra Librarian XM2F-0940-112L CAD Model

Description

The Omron XM2F series D-sub connector assembly is a receptacle with female sockets.

  • Positions: 9
  • Rows: 2
  • Shielded: Yes
  • Board Lock: Yes
  • Contact Finish: Gold with Flash Thickness
  • Voltage Rating: 300V
  • Current Rating: 3A
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: Not Applicable
  • Material: Steel with Nickel-Plated Finish
  • Dielectric Material: Polybutylene Terephthalate (PBT) Glass-Filled
  • Connector Style: D-Sub
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C to 105°C
  • Package Quantity: 90
  • Flange Feature: Mating Side, Female Screwlock (M2.6)
  • Status: Obsolete
