GRF7001 Guerrilla RF
Same model may have multiple batches, images only for reference.

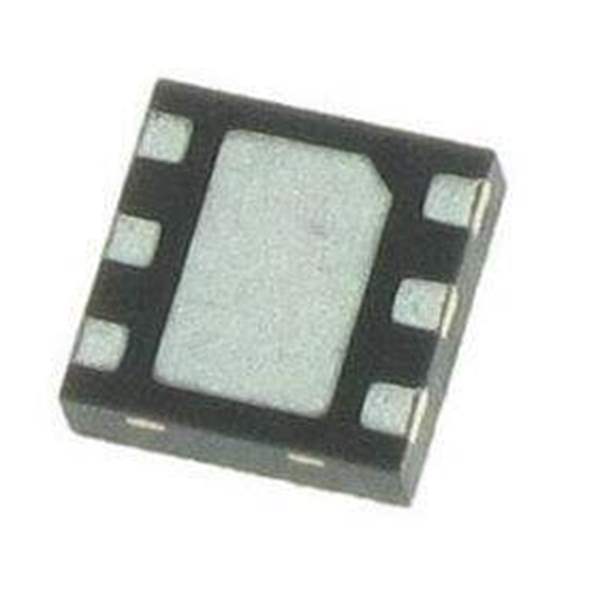

GRF7001

Part No GRF7001
Manufacturer Guerrilla RF, Inc.
Catalog RF Mixers
Description RF Mixer High Linearity Mixer with Integrated LO Buffer; 0.01 - 4.0 GHz
Datasheet
GRF7001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Guerrilla RF
Category RF Mixer
RF Frequency 808 MHz
NF - Noise Figure 7.1 dB
LO Frequency 965 MHz
Maximum Operating Temperature + 105 C
Minimum Operating Temperature - 40 C
Mounting Style SMD/SMT
Package / Case DFN-6
Gain - 6 dB
OIP3 - Third Order Intercept 25.4 dBm
Operating Supply Current 30 mA
Operating Supply Voltage 3 V to 5 V
Ultra Librarian 3D Model Ultra Librarian GRF7001 CAD Model

Description

The GRF7001 is a broadband (0.01 to 4 GHz) highlinearity mixer with an integrated LO buffer that can be used as either an up or down converter. The device inputs and outputs are single-ended and easily matched to 50 Ω. Implementation requires an external imagereject filter on the RF port and a bandpass filter on the IF port. Pins 4 and 6 can be used for either RF or IF with appropriate filtering in place. The integrated LO buffer operates from a single positive supply of 1.8 to 5 volts for both the VDD and VENABLE inputs.
