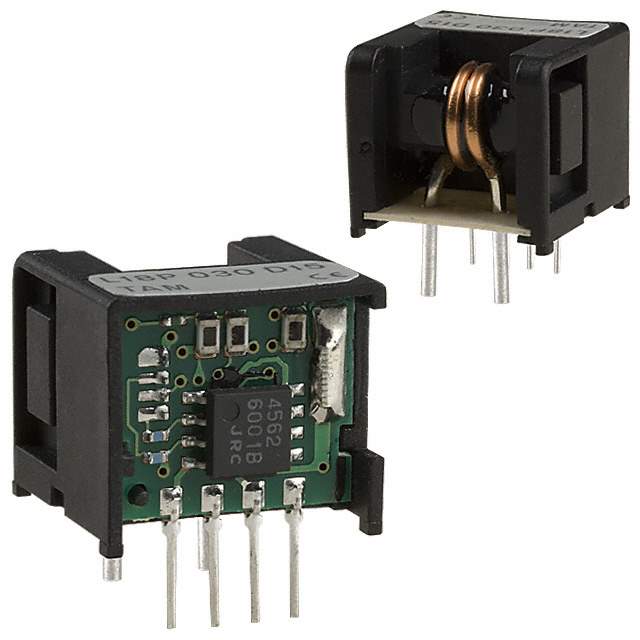

L18P030D15 Real Image
Same model may have multiple batches, images only for reference.

L18P030D15

Part No L18P030D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 30A AC/DC / Current Sensor 30A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Tamura
Package Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 30A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 100kHz
Linearity ±1%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 15mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9030.33.3800
Other Names S1-L18P030D15EY,MT7317
Standard Package 100
Win Source Part Number 1185990-L18P030D15
Ultra Librarian 3D Model Ultra Librarian L18P030D15 CAD Model

Description

The Tamura L18P030D15 is a ratiometric voltage output current sensor from Tamura.

  • Response Time: 5µs
  • Frequency Range: DC to 100kHz
  • Polarization: Bidirectional
  • Current Sensing Range: 30A
  • Linearity: ±1%
  • Accuracy: Not specified
  • Voltage Supply Range: ±15V
  • Maximum Current Supply: 15mA
  • Package: Module
  • Suitable for: AC/DC measurements
