FT4232H Mini Module - FTDI

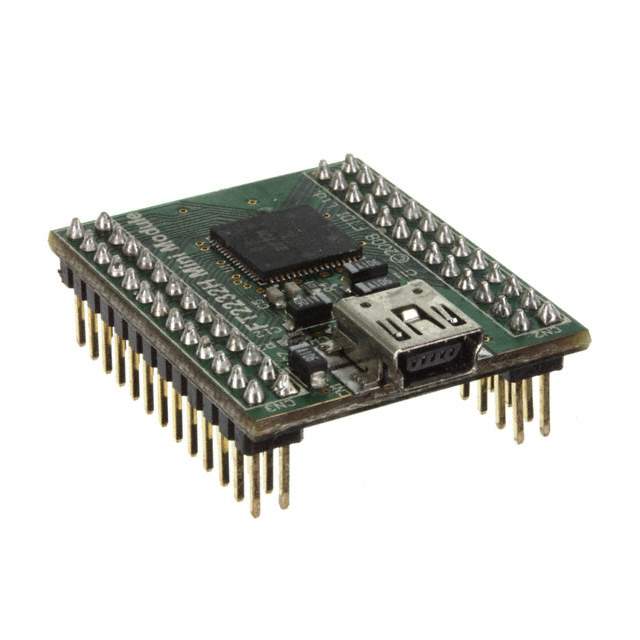

The FT4232H Mini Module from Future Technology Devices International Ltd (FTDI) is a compact USB to serial/multi-protocol module designed to provide an easy-to-use and flexible solution for system developers. This versatile module is based on FTDI's flagship FT4232H USB 2.0 Hi-Speed (480Mb/s) to UART/MPSSE IC, which is capable of handling various serial communication protocols with minimal effort.

Key Features:

• High-Speed USB Interface: With USB 2.0 Hi-Speed compatibility, the module offers a fast and reliable connection for data transfer and communication.
• Multiple Configurations: The FT4232H chip supports a variety of configurations, including 4 UARTs, 2 UARTs/2 FIFO, or 2 UARTs/1 FIFO/1 JTAG, making it suitable for a wide range of applications.
• Flexible Connectivity: The module provides access to all signal pins of the FT4232H device through a simple dual row header, which makes prototyping and integration into existing systems straightforward.
• Driver Support: FTDI offers royalty-free drivers for a multitude of operating systems, including Windows, Linux, and Mac OS, ensuring broad compatibility and ease of integration.
• LED Indicators: Equipped with LEDs for indicating USB power, TX and RX activity, the module provides visual feedback for debugging and monitoring purposes.
• USB Powered: The module draws power directly from the USB connection, eliminating the need for an external power supply for most applications.

Applications:

The FT4232H Mini Module is ideal for development and prototyping of USB interfaces, serial communication, and other applications that require bridging between USB and various serial protocols. It is commonly used in:

• Industrial Control Systems
• USB to RS232/RS422/RS485 Converters
• USB Instrumentation
• USB JTAG Programming
• USB to Multi-Protocol Synchronous Serial Engines (MPSSE)

With its robust design and versatile functionalities, the FT4232H Mini Module is an excellent choice for engineers and developers looking to implement USB connectivity with minimal development overhead.
