Same model may have multiple batches, images only for reference.

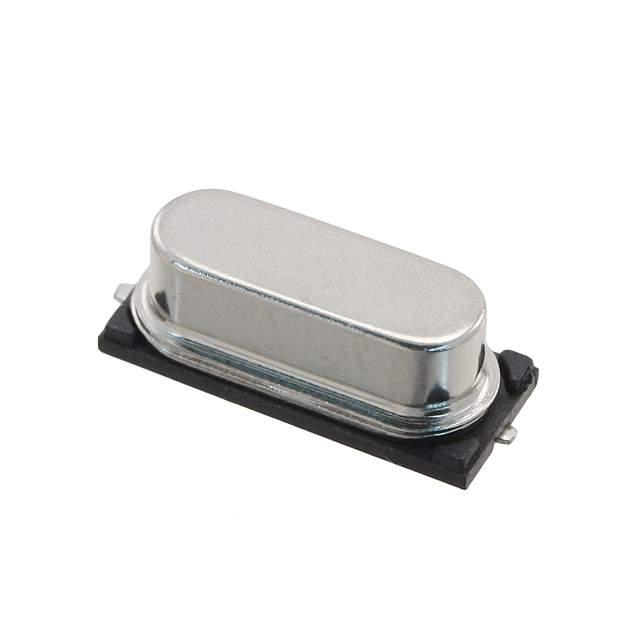

FOXSDLF/147-20/TR Real Image
Same model may have multiple batches, images only for reference.

FOXSDLF/147-20/TR

Part No FOXSDLF/147-20/TR
Manufacturer Fox Electronics
Catalog Crystals
Description Crystal 14.7456MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 40Ohm 2-Pin HC-49/SDLF SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Frequency 14.7456 MHz
Frequency Stability 50 ppm
Frequency Tolerance 0.003 %
Height 4.5 mm
Lead Free Lead Free
Length 13.9 mm
Load Capacitance 20 pF
Max Operating Temperature 70 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Pins 2
RoHS Compliant
Series Resistance 40 Ω
Termination SMD/SMT
Width 5 mm
Win Source Part Number 1170600-FOXSDLF/147-20/TR
Categories Crystals
Manufacturer Fox Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FOXSDLF/147-20/TR CAD Model

Description

The Fox Electronics MHz Crystal is a high-quality electronic component that comes in a compact size of 13.9 mm x 5 mm.

  • Size: 13.9 mm x 5 mm
  • Frequency: 14.7456 MHz
  • ESR (Equivalent Series Resistance): 40 Ω
  • Frequency Stability: 50 ppm
  • Mounting Type: Surface Mount
  • Load Capacitance: 20 pF
  • Mode: Fundamental
  • Temperature Range: -20 °C ~ 70 °C
  • Termination: SMD/SMT
