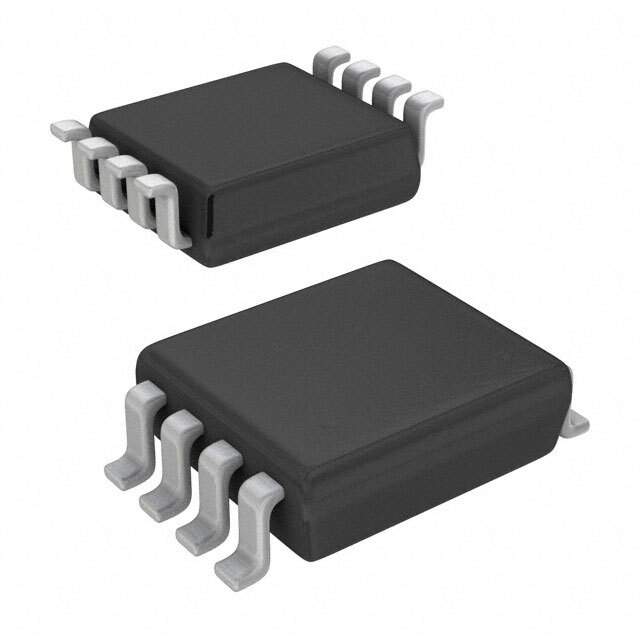

NC7WZ126K8X Real Image NC7WZ126K8X Real Image1 NC7WZ126K8X Real Image2
Same model may have multiple batches, images only for reference.
NC7WZ126K8X Real Image NC7WZ126K8X Real Image1 NC7WZ126K8X Real Image2
NC7WZ126K8X Real Image NC7WZ126K8X Real Image1 NC7WZ126K8X Real Image2
Same model may have multiple batches, images only for reference.

NC7WZ126K8X

Part No NC7WZ126K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUFFER UHS DUAL 3ST US8
Datasheet
NC7WZ126K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 32mA, 32mA
Supply Voltage - Operating 1.65 V to 5.5 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package US8
Win Source Part Number 024871-NC7WZ126K8X
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ126K8X CAD Model

Description

The NC7WZ126K8X is a buffer, non-inverting logic type integrated circuit with push-pull output from Fairchild/ON Semiconductor.

  • Supply Voltage: 1.65V to 5.5V
  • Package: US8
  • Elements: Two
  • Bit Per Element: One
  • Current Output (High/Low): 32mA each
  • Mounting: SMD (SMT)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Packaging: Reel - TR
  • Quantity: 3k pcs
  • Temperature Range: -40°C to 85°C (TA)
