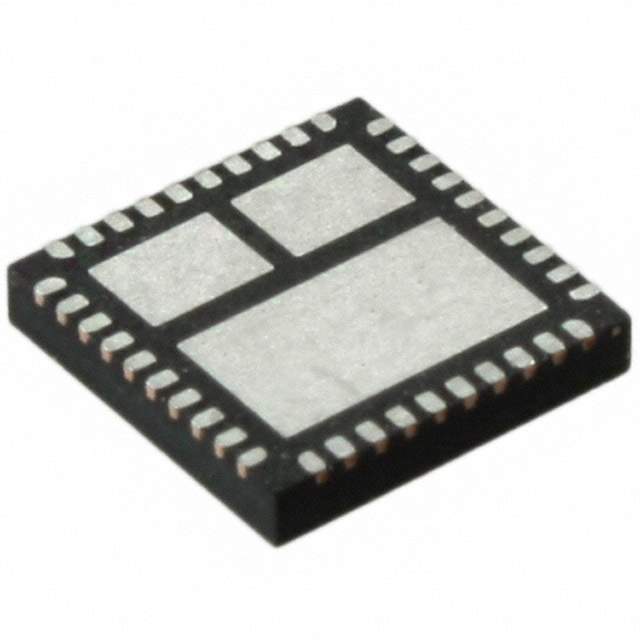

FDMF6820A Real Image
Same model may have multiple batches, images only for reference.

FDMF6820A

Part No FDMF6820A
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description New Products, Tips and Tools for Power and Mobile Applications
Datasheet
FDMF6820A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series XS DrMOS
Packaging Reel - TR
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1 Ohm LS, 1 Ohm HS
Output Current per Channel 60A
Operating Supply Voltage 4.5 V ~ 5.5 V
Voltage - Load 3 V ~ 16 V
Operating Temperature Range -40°C ~ 150°C (TJ)
Features Bootstrap Circuit, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting SMD
Package 40-PowerTFQFN
Manufacturer Package 40-PQFN (6x6)
Win Source Part Number 1173829-FDMF6820A
Manufacturer Homepage www.fairchildsemi.com
Family Name FDMF6820A
Introduction Date April 10, 2012
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMF6820A CAD Model

Description

The FDMF6820A is an integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Series: XS DrMOS
  • Popularity: medium
  • Application: various applications that require high-quality ICs
  • Features: high output current per channel, low Rds On, and excellent fault protection
