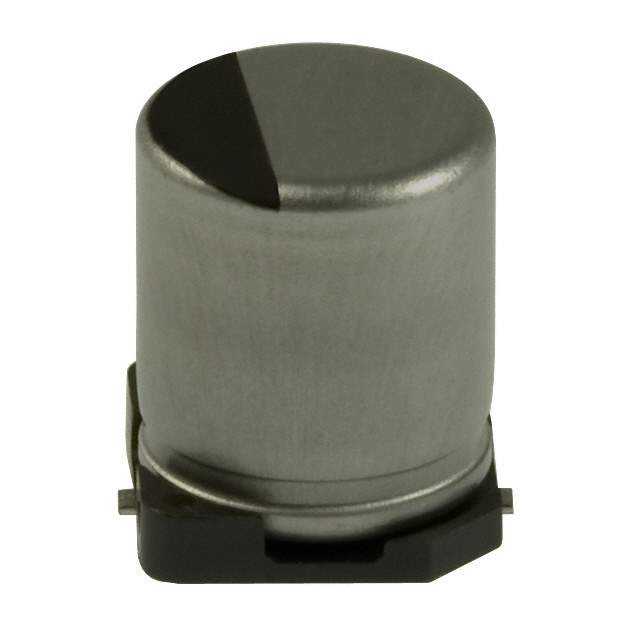

Same model may have multiple batches, images only for reference.

EEE-1HA470XAP

Name: EEE-1HA470XAP
Brand: Panasonic
SKU: 1331166
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-1HA470XAP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	105 mA @ 120 Hz
Ripple Current @ High Frequency	178.5 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.303" (7.70mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-1HA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	EEE1HA470XAP,PCE4622DKR,PCE4622TR,PCE4622CT
Standard Package	900
Win Source Part Number	1331166-EEE-1HA470XAP
Ultra Librarian 3D Model	Ultra Librarian EEE-1HA470XAP CAD Model

Description

The Panasonic Electronic Components 1331166-EEE-1HA470XAP is a surface mount aluminum electrolytic capacitor with a capacitance of 47 µF and a voltage rating of 50 V.

Capacitance: 47 µF
Voltage Rating: 50 V
Tolerance: ±20%
Polarized: Yes
Series: EEE-1HA
AEC-Q200 Rated: Yes
Application: Automotive
Ripple Current: 105 mA @ 120 Hz, 178.5 mA @ 10 kHz
Lifetime: 2000 hours @ 85°C
Package: Radial can in SMD form
Size: 0.248" Dia (6.30mm)
Height: 0.303" (7.70mm)
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
RoHS Compliant: Yes
