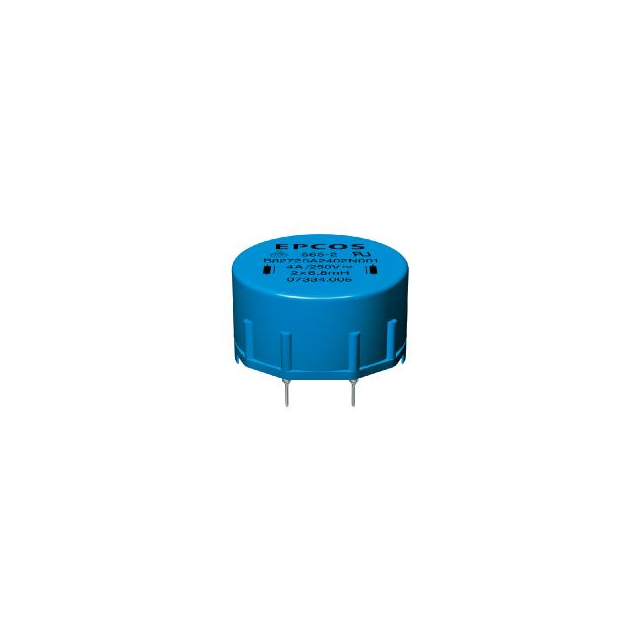

Same model may have multiple batches, images only for reference.
B82725A2122N020 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82725A2122N020

Part No B82725A2122N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 82 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 950mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82725
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 82 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 950mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 1.732" L x 1.669" W (44.00mm x 42.40mm)
Height (Max) 0.984" (25.00mm)
Package / Case Horizontal, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482224-B82725A2122N020
Ultra Librarian 3D Model Ultra Librarian B82725A2122N020 CAD Model
