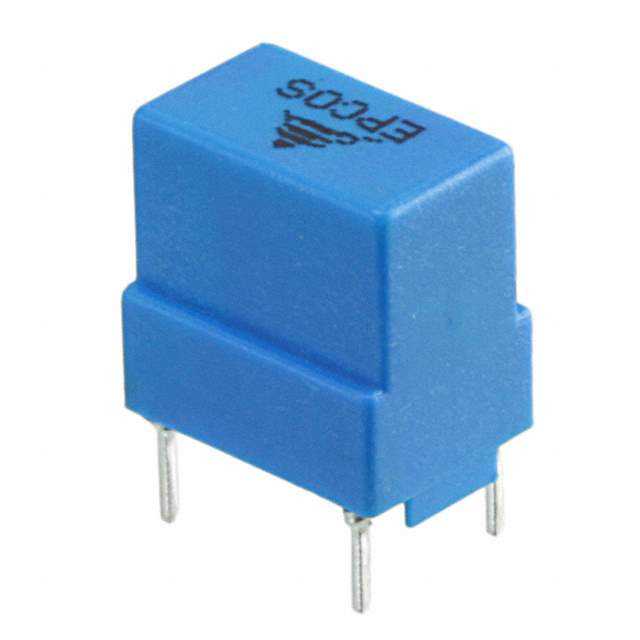

B82720K2301N040

Part No B82720K2301N040
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 12MH 300MA 2LN TH / 12 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 300mA DCR 1.1Ohm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82720
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 10 kHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 1.1Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.512" L x 0.374" W (13.00mm x 9.50mm)
Height (Max) 0.551" (14.00mm)
Package / Case Vertical, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names B82720K2301N40-ND,495-5720,B82720K2301N 40,B82720K2301N40
Standard Package 150
Win Source Part Number 1177921-B82720K2301N040
Ultra Librarian 3D Model Ultra Librarian B82720K2301N040 CAD Model

Description

The B82720 series common mode choke from EPCOS - TDK Electronics is an effective filter for power line applications.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 300mA
  • Mounting Type: Through-Hole
  • Package Dimensions: 0.512" L x 0.374" W (13.00mm x 9.50mm)
  • Height: 0.551" (14.00mm)
  • Inductance @ Frequency: 12 mH @ 10 kHz
  • DC Resistance (DCR) (Max): 1.1Ohm (Typ)
  • Package: Tray
  • Mounting Type: 4 PC Pin Vertical
  • Operating Temperature: -40°C to 125°C
  • Approvals: ENEC, UR, and VDE
