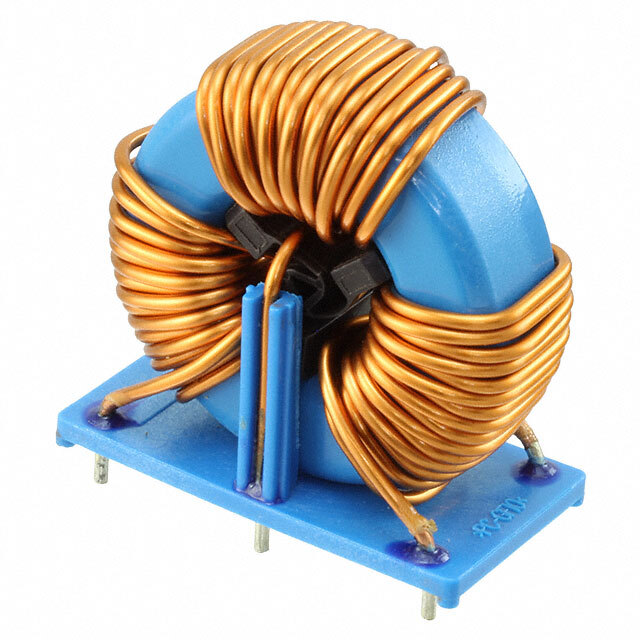

B82746S4103A021 EPCOS (TDK) – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

B82746S4103A021

Part No B82746S4103A021
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description 2 mH @ 10 kHz 3 Line Common Mode Choke Through Hole 10A DCR 9.6mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer EPCOS - TDK Electronics
Series B82746
Packaging Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 2 mH @ 10 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 9.6mOhm (Typ)
Voltage Rating - AC 500/300V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR
Mounting Type Through Hole
Size / Dimension 1.772" L x 0.906" W (45.00mm x 23.00mm)
Height (Max) 1.850" (47.00mm)
Package / Case Vertical, 6 PC Pin
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1482304-B82746S4103A021
Ultra Librarian 3D Model Ultra Librarian B82746S4103A021 CAD Model
