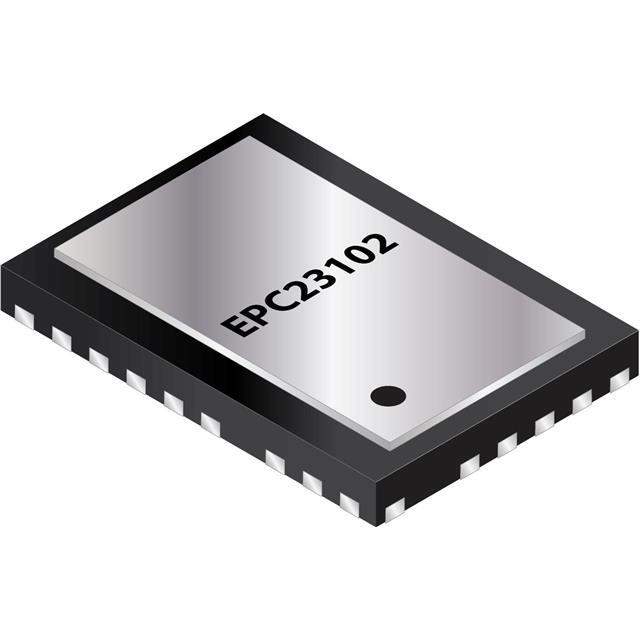

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr EPC
Series ePower™
Package Tape & Reel
Output Configuration Half Bridge
Applications AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface Logic, PWM
Load Type Inductive, Capacitive, Resistive
Technology NMOS
Rds On (Typ) 5.2mOhm LS, 5.2mOhm HS
Current - Output / Channel 35A
Voltage - Supply 4.5V ~ 5.5V
Voltage - Load 10V ~ 80V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Features Bootstrap Circuit
Fault Protection Current Limiting, ESD, Over Voltage, UVLO
Mounting Type Surface Mount, Wettable Flank
Package / Case 13-PowerWFQFN
Supplier Device Package 13-WQFN-HR (3.5x5)
Base Product Number EPC23102
Standard Package 3,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337328-EPC23102ENGRT
Ultra Librarian 3D Model Ultra Librarian EPC23102ENGRT CAD Model

Description

The EPC23102ENGRT is a full half-bridge driver from EPC.

  • Type: Full Half-Bridge
  • Technology: NMOS
  • Interface: Logic, PWM
  • Output Configuration: Half Bridge
  • Output Current: 35A
  • Load Type: Inductive, Capacitive, Resistive
  • Voltage - Load: 10V ~ 80V
  • Voltage - Supply: 4.5V ~ 5.5V
  • Rds On (Typ): 5.2mOhm LS, 5.2mOhm HS
  • Fault Protection: Current Limiting, ESD, Overvoltage, UVLO
  • Mounting Type: Surface Mount, Wettable Flank
  • Package / Case: 13-PowerWFQFN
  • Packaging: Tape & Reel (TR)
  • Standard Package: 3,000
