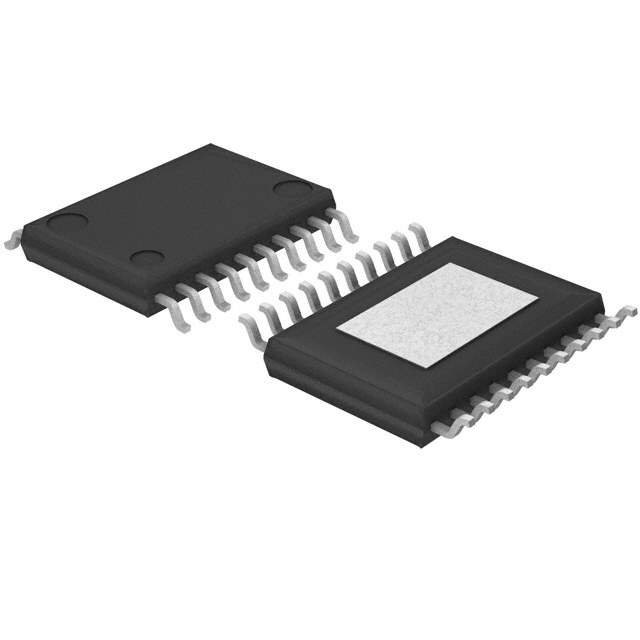

MP8042DF-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP8042DF-LF-Z

Part No MP8042DF-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER / 24V, 5A DUAL CHANNEL POWER HALF-BRIDGE
Datasheet
MP8042DF-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel package
Output Configuration Half Bridge (2)
Applications General
Interface PWM
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 150 mOhm
Current - Peak Output 5A
Operating Supply Voltage 7.5 V ~ 24 V
Voltage - Load 7.5 V ~ 24 V
Operating Temperature Range -40°C ~ 125°C (TJ)
Features Status Flag
Fault Protection Current Limiting, Over Temperature, UVLO
Mounting SMD
Package 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
Manufacturer Package 20-TSSOPF
Win Source Part Number 789206-MP8042DF-LF-Z
Popularity Medium
Supply and Demand Status Limited
Family Name MP8042
Introduction Date May 23, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MP8042DF-LF-Z CAD Model

Description

The Monolithic Power Systems MP8042DF-LF-Z is a power MOSFET designed for use in general applications.

  • Package: 20-TSSOP (0.173", 4.40mm Width) exposed pad
  • Input Voltage Range: 7.5V to 24V
  • Configuration: Half-Bridge (2)
  • Load Type: Inductive
  • Maximum Output Voltage: 24V
  • Peak Output Current: 5A
  • Fault Protection: Current Limiting, Over-Temperature, UVLO
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • ECCN: EAR99
  • Estimated EOL Date: Obsolete/End of Life
