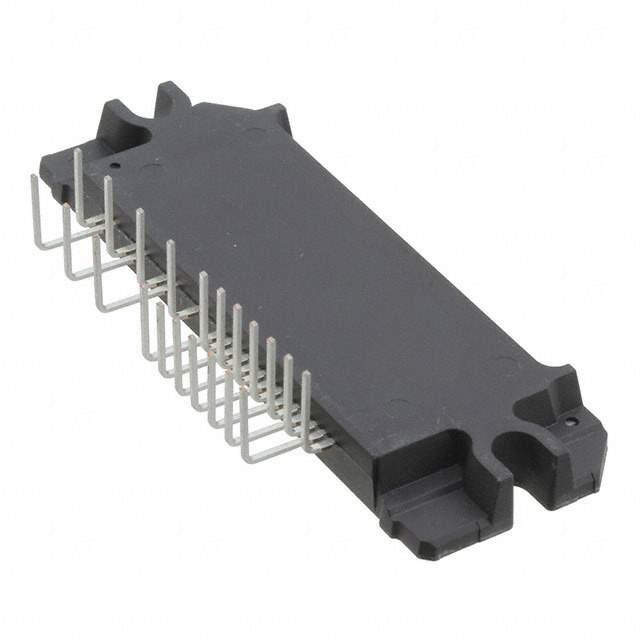

The STK534U342C-E from ON Semiconductor is a state-of-the-art Intelligent Power Module (IPM) that integrates power devices, drivers, and protection features into a single package, designed to drive high-performance applications requiring high reliability and efficiency.

This module is part of ON Semiconductor's esteemed SLLIMM™-nano series, which stands for Small Low-Loss Intelligent Molded Module. It is particularly suitable for driving small motor applications such as fans, pumps, and compressors in both consumer and industrial domains.

Key Features:

• Integrated Design: Combining IGBTs, freewheeling diodes, and gate drivers in one package reduces the complexity of design and assembly, leading to a more compact and reliable end product.
• High Voltage Rating: With a 600V rating, this IPM can handle the demands of a wide range of high voltage applications, providing robust performance even under strenuous conditions.
• Advanced Protection: Features such as Under-Voltage LockOut (UVLO) and Over-Current Protection (OCP) ensure the module operates within safe parameters, thereby extending the lifespan of the product.
• Optimized Switching Performance: The module is designed for low loss and high-speed switching, which enhances overall efficiency and reduces thermal stress on the system.
• Compact Footprint: The STK534U342C-E comes in a compact package, making it ideal for applications where space is at a premium.

Applications:

The versatility of the STK534U342C-E allows it to be used in a variety of applications. Some of the common use cases include:

• Home appliances such as air conditioners and refrigerators
• Office automation equipment like photocopiers and printers
• Industrial machinery including conveyor belts and automated guided vehicles (AGVs)
• Fans, pumps, and other HVAC (Heating, Ventilation, and Air Conditioning) components

With its robust design and integrated features, the STK534U342C-E offers a highly efficient, reliable, and compact solution for modern motor drive applications, reflecting ON Semiconductor's commitment to innovation and excellence in power management technology.
