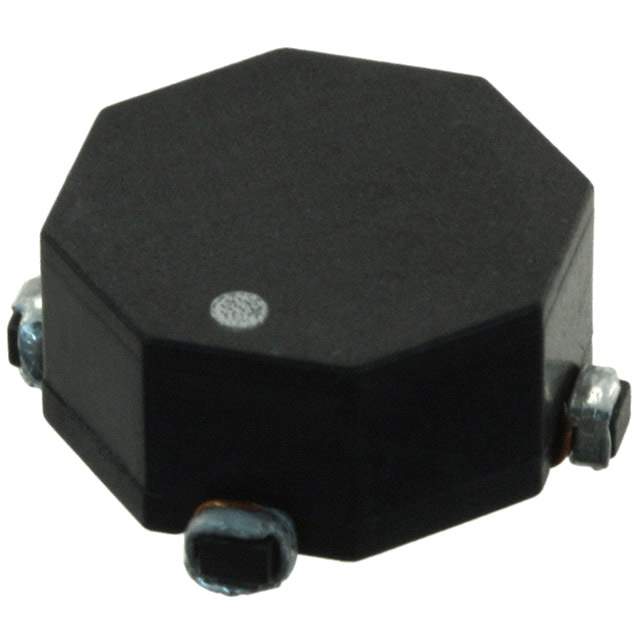

CMS3-11-R Real Image
Same model may have multiple batches, images only for reference.

CMS3-11-R

Part No CMS3-11-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 648UH 1.2A 2LN SMD / Common Mode Chokes Dual 648uH 100kHz 1.2A 0.107Ohm DCR SMD T/R
Datasheet
CMS3-11-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Eaton
Series CMS
Packaging Reel package
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 648μH @ 100kHz
Current Rating (Maximum) 1.2A
DC Resistance (DCR) (Maximum) 107 mOhm (Typ)
Operating Temperature Range -40°C ~ 160°C
Mounting SMD
Dimension 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height (Maximum) 0.236" (6.00mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 771645-CMS3-11-R
Popularity Medium
Supply and Demand Status Limited
Family Name CMS
Introduction Date February 22, 2001
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian CMS3-11-R CAD Model

Description

The CMS3-11-R power line filter component is manufactured by Eaton.

  • Package: Horizontal, 4 PC pad
  • Operating Temperature Range: -40°C to 160°C
  • ECCN: EAR99
  • Introduction Date: February 22, 2001
  • Estimated EOL Date: 2023
  • Made In: Philippines
