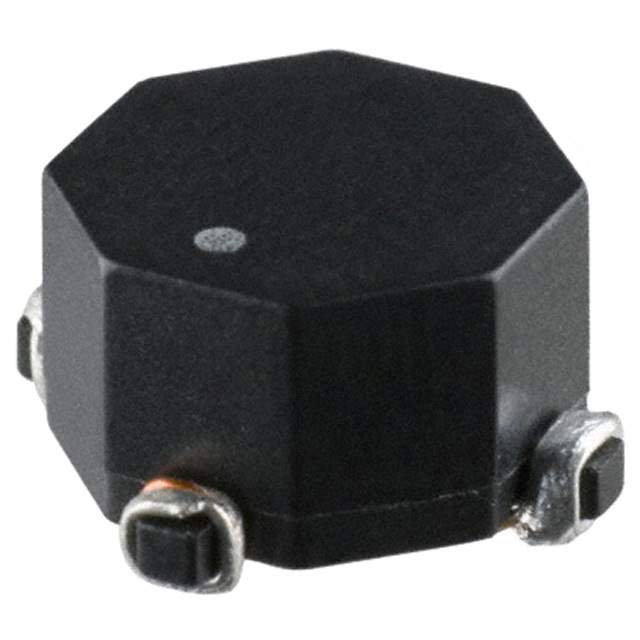

CMS2-4-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-4-R

Part No CMS2-4-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 102UH 2.8A 2LN SMD / 102 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.8A DCR 19mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 102 µH @ 100 kHz
Current Rating (Max) 2.8A
DC Resistance (DCR) (Max) 19mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 513-1115-2,513-1115-1,CMS2-4,513-1115-6,CMS2-4-ND,CMS24R
Standard Package 800
Win Source Part Number 1022048-CMS2-4-R
Ultra Librarian 3D Model Ultra Librarian CMS2-4-R CAD Model

Description

The Eaton - Electronics Division 1022048-CMS2-4-R is a common mode choke used for power line filtering applications.

  • Current Rating: 2.8A
  • Inductance: 102 µH @ 100 kHz
  • Mounting: SMD (SMT) mounting
  • Package: horizontal, 4 PC pad
  • DC Resistance (DCR): 19mOhm (Typ)
  • Height: 0.236" (6.00mm)
  • MSL Level: 1 (Unlimited)
  • Standard Package: 800
